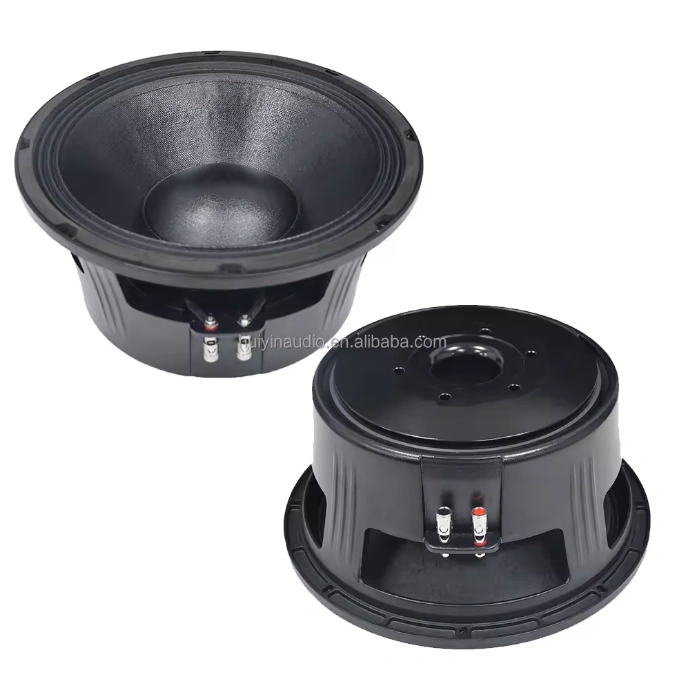

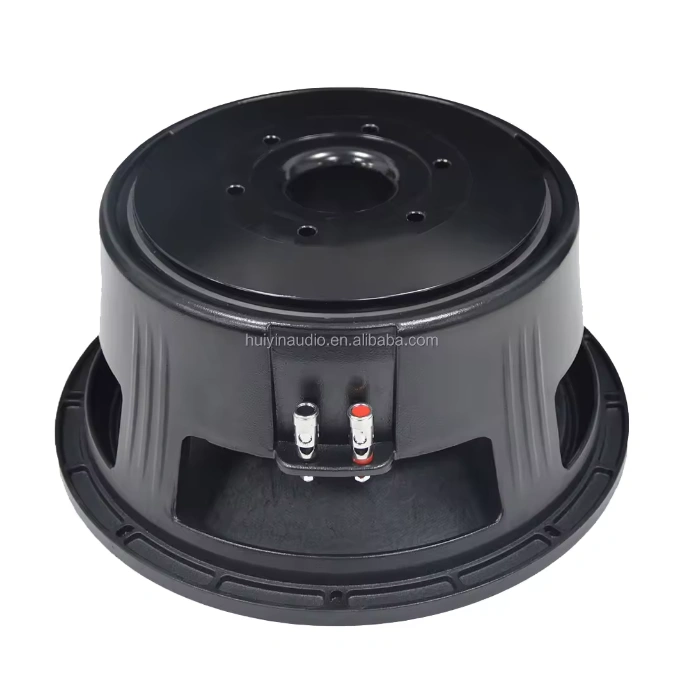

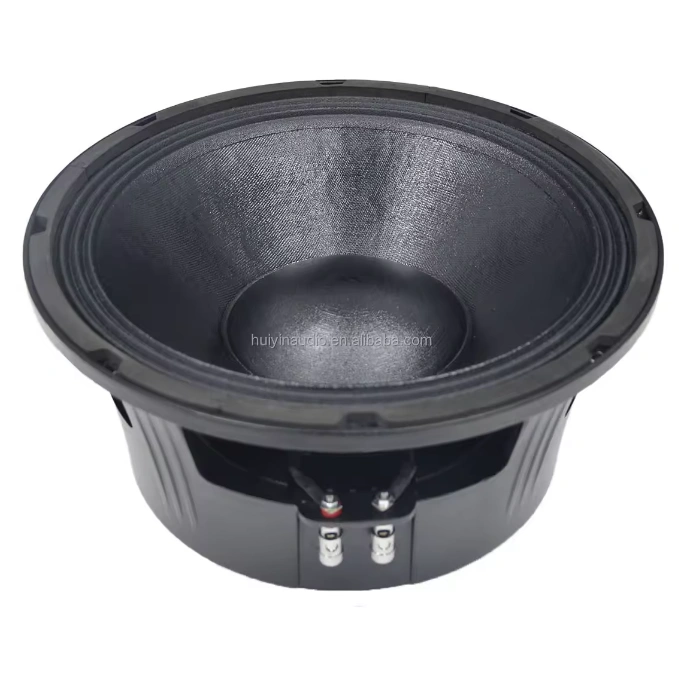

From Huiyin Audio's HYW-12100-022 is a 12-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.
| Model | HYW-12100-022 |
| Nominal diameter | 12 inch |
| DC Resistance | 5.6Ω |
| BL Factor | 20.28 |
| Effective Moving Mass | 87.07 |
| Total Factor(QTS) | 0.67 |
| Electrical Factor(QMS) | 8.88 |
| Mechanical Factor(QES) | 0.72 |
| Compliance(CMS) | 0.03 |
| Equivalent Cas Air Load(VAS) | 12.41 |
| Resonance Frequency(FS) | 95.53 |
| Effettive Pistom Area(SD) | 0.05 |
| η(Eta Zero) | 1.52 |
| Nominal Diameter | 12 inch |
| Nominal Impedance | 8Ω |
| AES power Handling AES | 600W |
| Continuous program power | 1200W |
| Sensitivity 1w/1m | 97dB |
| Frequency Range | 95HZ-2KHZ |
| Voice Coil Diameter | 100mm |
| Winding Material | EISV/Inner and outer layers |
| Former Material | GBF |
| Winding Depth | 24mm |
| Xmax | 10mm |
| surround material | Paper cone cloth edge |
| surround Design | Type W |
| Magnet | 210X110X25 Ferrite |
| Overall Diameter | 314mm |
| Bolt circle Diameter | 297-8-6.5 |
| Baffle Cutout Diameter | 283mm |
| Depth | 151mm |
| Net Weight | 9.8KG |
| Shipping Weight | 12KG |
| Shipping Box(Single) | 315×315×152mm |
|
