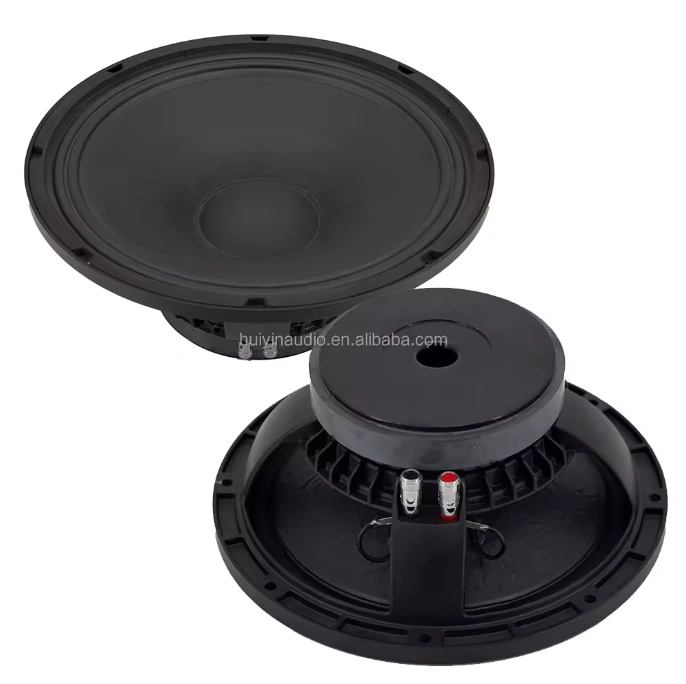

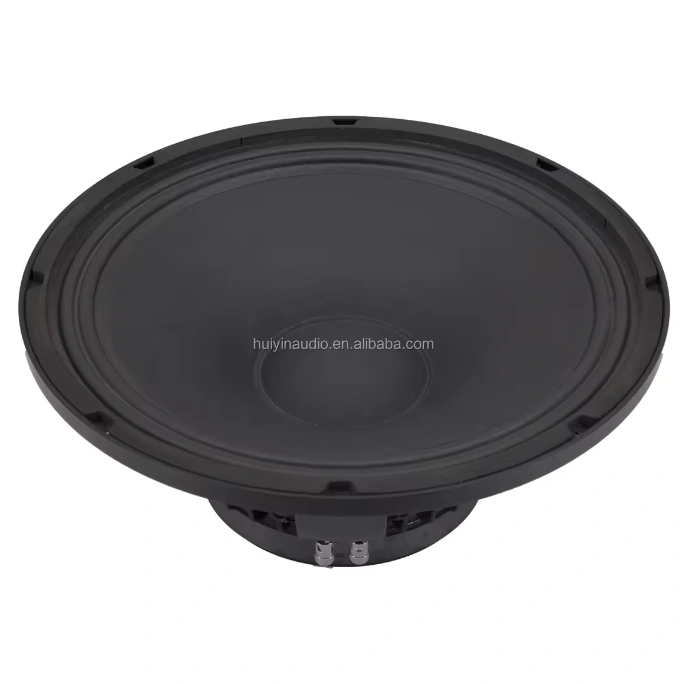

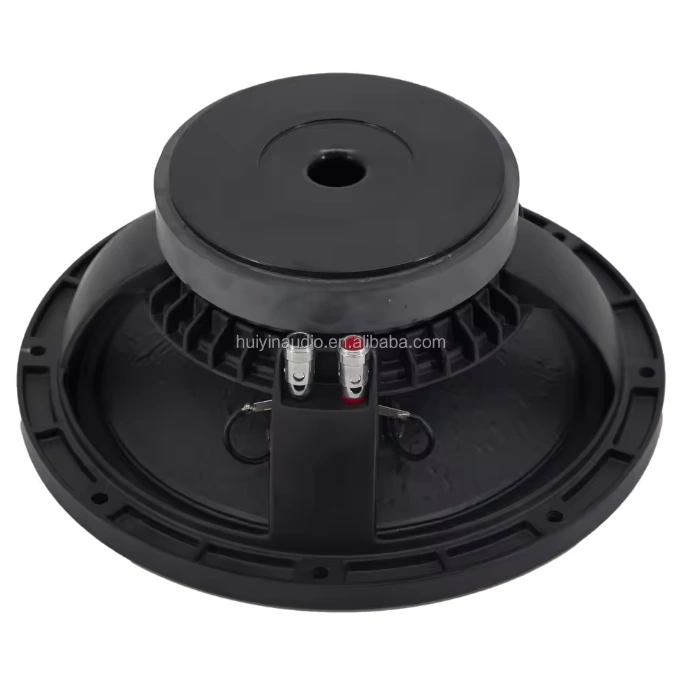

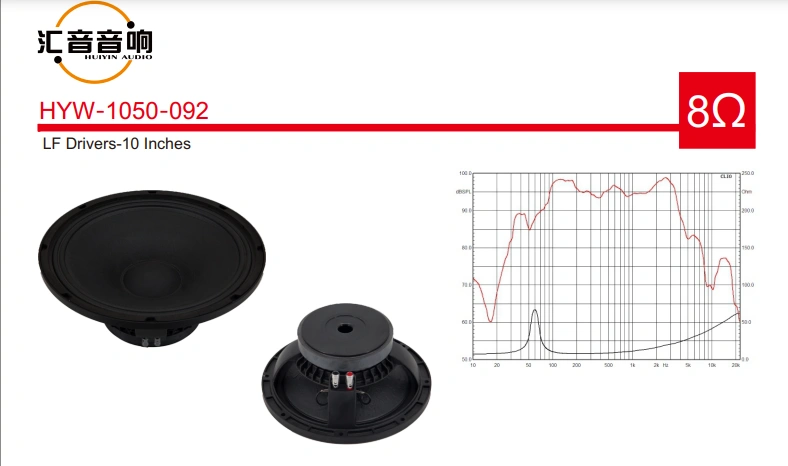

HYW-1050-092 Ferrite Speakers 10 Inch Big Power RMS 250W Mid Bass Pro Line Array Woofer For Sale

Name: HYW-1050-092 Ferrite Speakers 10 Inch Big Power RMS 250W Mid Bass Pro Line Array Woofer For Sale
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-1050-092
Price: 20 USD
Availability: InStock

From Trumbosound's HYW-1050-092 is an 10-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties. Its excellent heat dissipation ability provides a stable output capacity for the speaker, so that the speaker can maintain stable performance and good sound quality at high output.

0.0 (0 Reviews)

0 Sold

$20.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Parmeter

Model	HYW-1050-092
Nominal diameter	10 inch
DC Resistance	5.8Ω
BL Factor	12.3283
Effective Moving Mass	37.2420
Total Factor(QTS)	0.4646
Electrical Factor(QMS)	5.6112
Mechanical Factor(QES)	0.5065
Compliance(CMS)	0.2114
Equivalent Cas Air Load(VAS)	35.4168
Resonance Frequency(FS)	56.7288
Effettive Pistom Area(SD)	0.0346
η(Eta Zero)	1.2249

General Specificatons

Nominal Diameter	10 inch
Nominal Impedance	8Ω
AES power Handling AES	250W
Continuous program power	500W
Sensitivity 1w/1m	94dB
Frequency Range	60HZ-3KHZ
Voice Coil Diameter	50mm
Winding Material	Aluminum wire inner and outer layer solid winding
Former Material	glassfiber
Winding Depth	13mm
Xmax	8mm
surround material	Paper cone cloth edge
surround Design	Type W
Magnet	Ferrite

Mounting&Shipping Information

Overall Diameter	261mm
Bolt circle Diameter	245-8-Ф6.5
Baffle Cutout Diameter	234mm
Depth	111mm
Net Weight	3.3KG
Shipping Weight	3.7KG
Shipping Box(Single)	265×265×120mm
Shipping Weight(8Unit)	14.8KG
Shipping box(8umit)	530×265×245mm

Features

Good heat dissipation, high coercivity and magnetic stability
High temperature resistance, high precision, good practicality and preservation
High sensitivity makes it easier to drive, stable and safe performance
Strong sound expression, more realistic listening experience
Carbon fiber fabric edge has strong high temperature resistance and corrosion resistance

Application
Outdoor weddings
Mobile performance stage
Line array system installation
