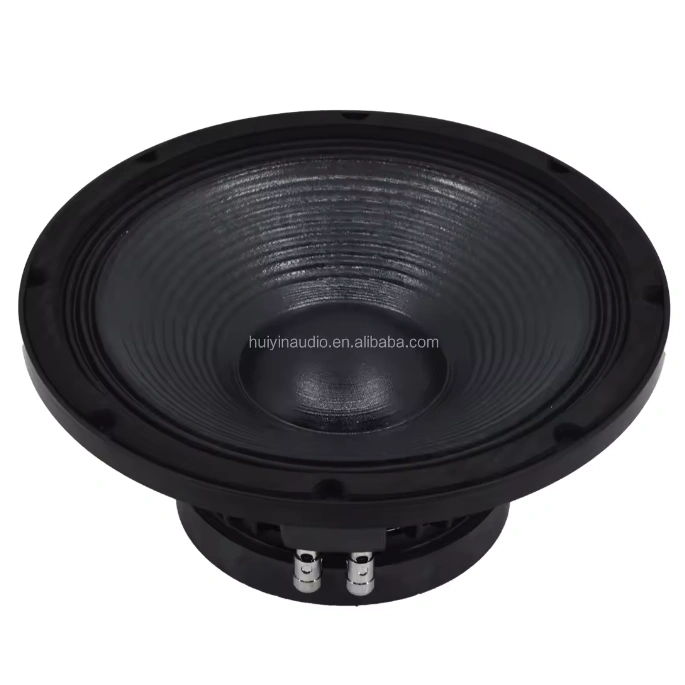

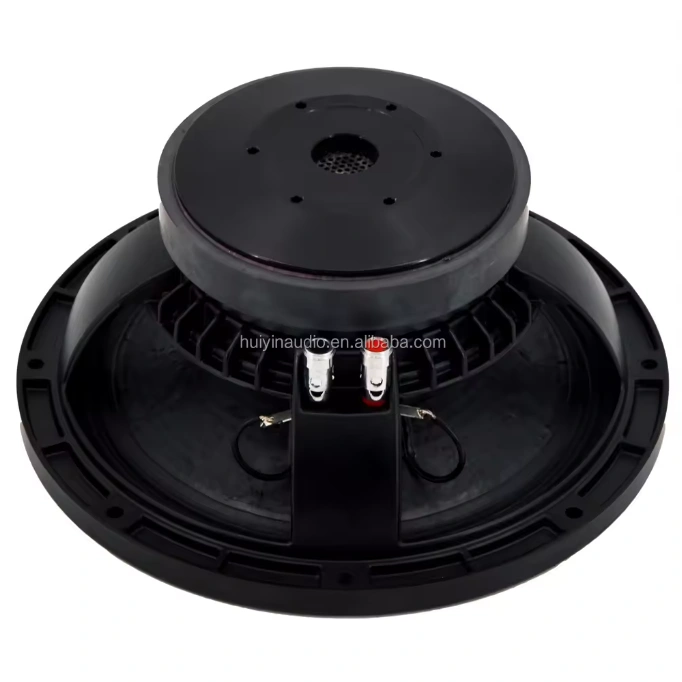

From Huiyin Audio's HYW-1065-044A is a 10-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.
| Model | HYW-1065-044A |
| Nominal diameter | 10 inch |
| DC Resistance | 5.2Ω |
| BL Factor | 12.6540 |
| Effective Moving Mass | 37.2420 |
| Total Factor(QTS) | 0.4002 |
| Electrical Factor(QMS) | 5.8959 |
| Mechanical Factor(QES) | 0.4249 |
| Compliance(CMS) | 0.2130 |
| Equivalent Cas Air Load(VAS) | 31.3691 |
| Resonance Frequency(FS) | 56.5057 |
| Effettive Pistom Area(SD) | 0.0350 |
| η(Eta Zero) | 1.4670 |
| Nominal Diameter | 10 inch |
| Nominal Impedance | 8Ω |
| AES power Handling AES | 300W |
| Continuous program power | 600W |
| Sensitivity 1w/1m | 97dB |
| Frequency Range | 55HZ-2.5KHZ |
| Voice Coil Diameter | 65mm |
| Winding Material | Aluminum wire inner and outer layer solid winding |
| Former Material | glassfiber |
| Winding Depth | 13mm |
| Xmax | 10mm |
| surround material | Paper cone cloth edge |
| surround Design | Type W |
| Magnet | Ferrite |
| Overall Diameter | 261mm |
| Bolt circle Diameter | 245-8-Ф6.5 |
| Baffle Cutout Diameter | 234mm |
| Depth | 115mm |
| Net Weight | 3.8KG |
| Shipping Weight | 4.2KG |
| Shipping Box(Single) | 265×265×120mm |
| Shipping Weight(8Unit) | 16.8KG |
| Shipping box(8umit) | 675×285×300mm |
|
