Home > Professional Horns > Trumbosound 10-Inch 600W Dual Ohm Professional LF Speaker | Deep Bass Audio

1/1

Trumbosound 10-Inch 600W Dual Ohm Professional LF Speaker | Deep Bass Audio

Name: Trumbosound 10-Inch 600W Dual Ohm Professional LF Speaker | Deep Bass Audio
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-1065-073B
Price: 23 USD
Availability: InStock

The 10-inch dual-ohm ultra low frequency speaker for deep bass for home from Trumbosound brings unparalleled shocking power to your sound. This built-in ferrite LF speaker is designed for outdoor sound, with a peak power of 600 watts and an AES power of 400 watts. The sound is deep and shocking, making it the best partner for outdoor line array sound systems.

0.0 (0 Reviews)

0 Sold

$23.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Bring you a deep and shocking auditory experience

Deep and powerful low-frequency output brings you a shocking listening experience.
High power handling capacity, no sound distortion or breakage.
Accurate frequency response makes the sound clearer and more accurate.
Good acoustic design makes the sound purer and smoother.

Material advantages

Lightweight
High strength and high rigidity
Good fatigue resistance
Low damping
Good stability

Parmeter

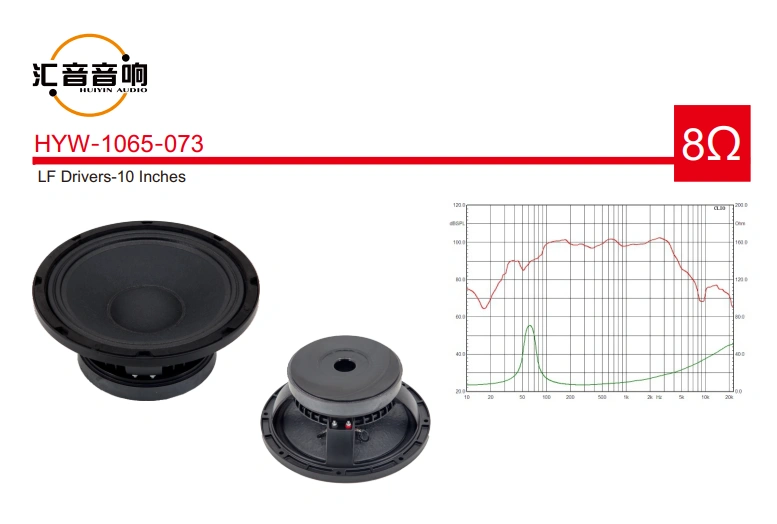

Model	HYW-1065-073
Nominal diameter	10 inch
DC Resistance	5.2Ω
BL Factor	14.8399
Effective Moving Mass	42.4779
Total Factor(QTS)	0.3629
Electrical Factor(QMS)	4.9428
Mechanical Factor(QES)	0.3916
Compliance(CMS)	1.1552
Equivalent Cas Air Load(VAS)	25.9914
Resonance Frequency(FS)	61.8488
Effettive Pistom Area(SD)	0.0346
η(Eta Zero)	1.5074

General Specificatons

Nominal Diameter	10 inch
Nominal Impedance	8Ω
AES power Handling AES	300W
Continuous program power	600W
Sensitivity 1w/1m	99dB
Frequency Range	60HZ-3KHZ
Voice Coil Diameter	65mm
Winding Material	Aluminum wire inner and outer layer solid winding
Former Material	glassfiber
Winding Depth	14mm
Xmax	8mm
surround material	Paper cone cloth edge
surround Design	Type W
Magnet	Ferrite

Mounting&Shipping Information

Overall Diameter	261mm
Bolt circle Diameter	245-8-Ф6.5
Baffle Cutout Diameter	234mm
Depth	115mm
Net Weight	4.7KG
Shipping Weight	5.0KG
Shipping Box(Single)	265×265×120mm
Shipping Weight(8Unit)	20KG
Shipping box(8umit)	530×265×245mm

Features

10 inch PA speaker

300W RMS, Maximum Power Capacity 600W
99dB sensitivity 1W/1M
60HZ-3KHZ frequency response
Ferrite
65mm copper voice coil
Bright carbon fiber basin edge
For outdoor performance karaoke

Application

Outdoor weddings
Home audio system
Stage performance
Recording studio
Karaoke

Our advantage

OEM/ODM:Professional speaker audio manufacturer, focusing on the manufacture and sale of speakers and amplifiers for more than ten years.
QC:All our products comply with international quality standards.
Our Power:The factory area is 5000-10000㎡, with an annual output of 50 million to 100 million US dollars.
Technical Team:The company was founded in 2008, with a team of 50-100 people and a 100% rapid response rate

About Us

Welcome to Trumbosound, where our passion for exceptional audio performance drives us to deliver top-tier speakers and amplifiers. Founded in 2009 in Guangzhou, China, we specialize in both professional and car audio systems. Our commitment to quality resonates through every product, designed to bring unparalleled sound to your spaces.

Over the years, Trumbosound has embraced technological advances to enhance our product lineup. Our state-of-the-art facilities include automated production lines and specialized testing equipment, ensuring every item meets rigorous standards. In 2017, our dedication to innovation was recognized when we were designated as a high-tech enterprise.

Trumbosound offers a broad range of audio products, meticulously crafted to suit diverse needs. From booming car speakers to refined professional audio systems, our products promise durability and clarity. We also pride ourselves on our ability to offer customized solutions, catering to unique market demands with flexibility in design and functionality.

FAQ
Who are we?
Trumbosound specializes in high-quality car and professional audio systems, dedicated to delivering superior sound experiences.

How can we guarantee quality?
We ensure quality through rigorous testing and by utilizing advanced manufacturing technologies in our state-of-the-art facilities.

What can you buy from us?
We offer a wide range of audio products including car speakers, professional audio systems, and custom audio solutions.

Why should you buy from us and not from other suppliers?
Trumbosound stands out for its commitment to innovation, quality, and customer-focused solutions in audio technology.

What services can we provide?
We provide comprehensive customer support, customization options for our audio products, and expert guidance on all ourofferings.

COMPANY OVERVIEW

Company Album

Business type	Manufacturer	Country / Region	Guangdong, China
Main Products	car subwoofer,professional subwoofer, perfessional speaker, amplifier,high power amplifier for car, tweeter, pa speaker box,line array speaker ect	Total employees	50- 100 People
Year established	2008	Certifications	-
Product Certifications	CE	Patents	-
Trademarks		Main Markets	Domestic Market 60.00%

PRODUCT CAPACITY

Factory Information

Factory Size	Below 1,000 square meters
Factory Country/Region	No.28, Sanle East Road, Shunjiang Community, Beijiao Town, Shunde District, Foshan City
No. of Production Lines	5
Contract Manufacturing	OEM Service Offered
Annual Output Value	US$1 Million - US$2.5 Million
