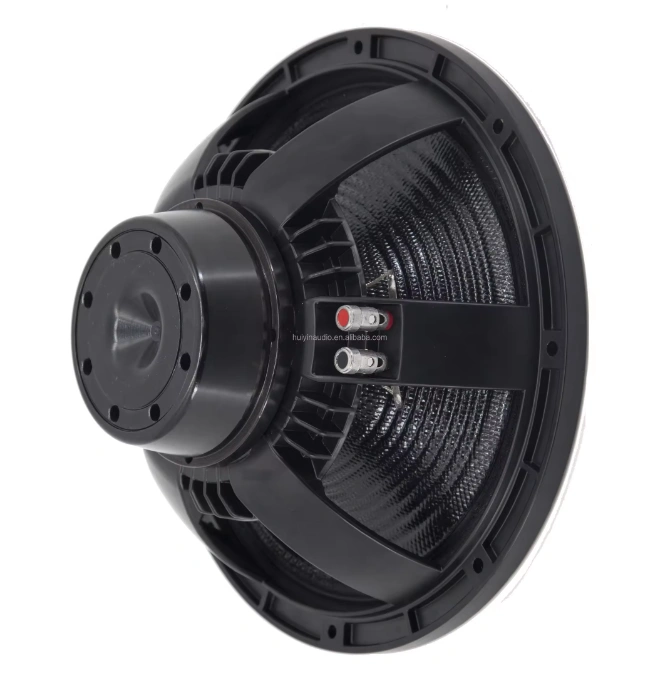

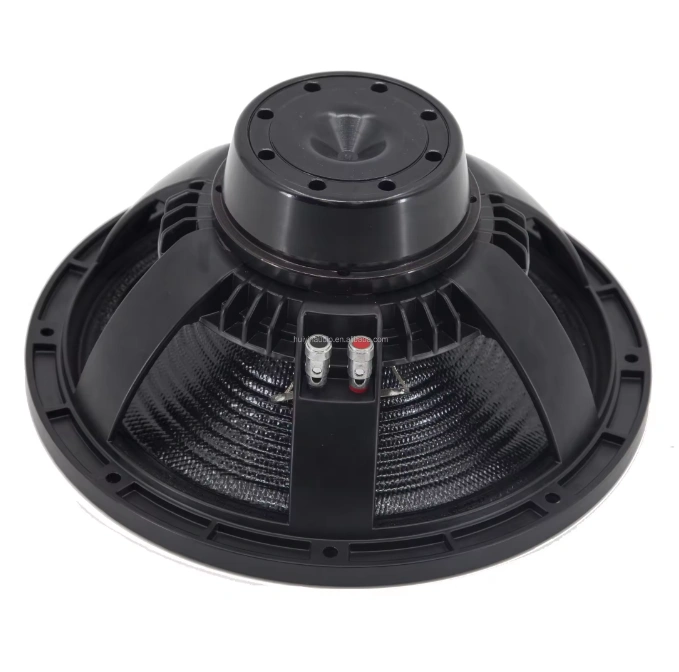

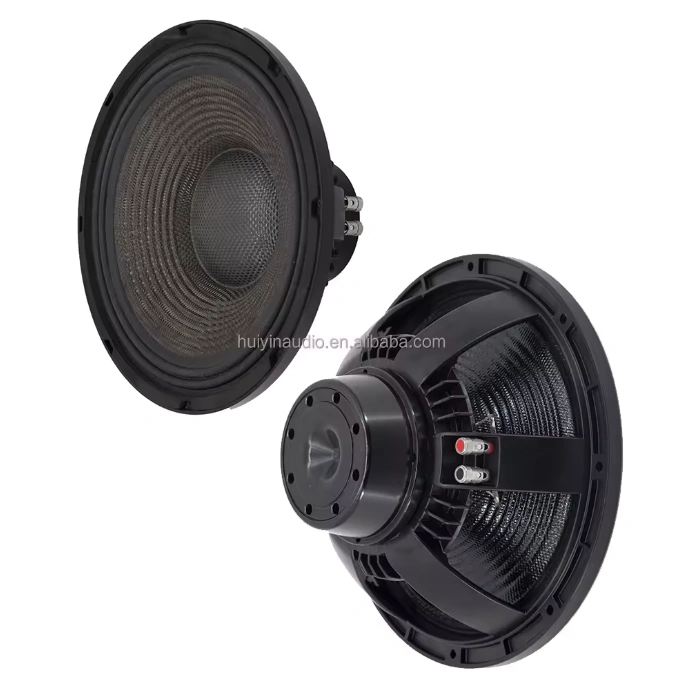

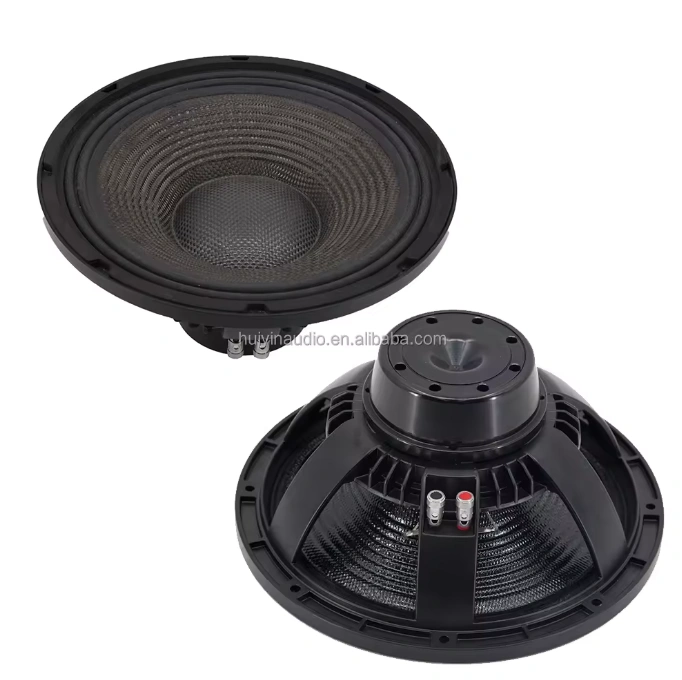

HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party

SKU:

From Trumbosound HYW-1275-090 is a 12-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.The speaker is equipped with high-quality carbon fiber waterproof material, which is light in weight, good in rigidity, and can transmit sound farther, making it the best partner for line array speaker system.The volume is loud, so you don't have to worry about insufficient volume, creating a shocking sound effect for you, so that your voice can be heard everywhere

0.0 (0 Reviews)
0 Sold
$0.00 $67.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$59.00
100-1000
Quantity
-
+
0 * $67 = $0
save $0.00
  • HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party
  • HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party
  • HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party
  • HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party
  • HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party
  • HYW-1275-090 Sound System Woofer Speaker 12 Inch Neodymium magnet RMS 450W 3 Inch Coil Carbon Fiber Cone For Events Party
  • Product details
  • Company profile
Parmeter
Model HYW-1275-090
Nominal diameter 12 inch
DC Resistance(RE) 6.8Ω
BL Factor(BL)

12.6319

Effective Moving Mass

69.1270

Total Factor(QTS)

0.7371

Electrical Factor(QMS)

4.3794

Mechanical Factor(QES)

0.8862

Compliance(CMS)

0.1598

Equivalent Cas Air Load(VAS)

62.9158

Resonance Frequency(FS)

47.8798

Effettive Pistom Area(SD)

0.0531

η(Eta Zero)

0.7481


General Specificatons
Nominal Diameter 12 inch
Nominal Impedance
AES power Handling AES 450W
Continuous program power 900W
Sensitivity 1w/1m 100dB
Frequency Range

48HZ-2.5KHZ

Voice Coil Diameter 75mm
Winding Material Aluminum wire outer 1 layers solid winding
Former Material glassfiber
Winding Depth 15mm
Xmax 10mm
surround material Paper cone cloth edge
surround Design Type W
Magnet Neodymium magnets

Mounting&Shipping Information
Overall Diameter

312mm

Bolt circle Diameter

294-8-Ф6.5

Baffle Cutout Diameter

285mm

Depth

145mm

Net Weight

4.0KG

Shipping Weight

4.5KG

Shipping Box(Single)

315×315×160mm



Features
  • Made of high-end waterproof material, it can be used outdoors with confidence
  • 900w continuous high power, sufficient output energy
  • Lightweight, good rigidity, sound can be transmitted farther
  • Wide frequency response, can better display the sound from low frequency to high frequency
  • Provides a richer and more realistic auditory experience

Application:
  • Outdoor Weddings
  • Mobile performance stage
  • Line Array System Installation

Our advantage
OEM/ODM:Professional speaker audio manufacturer, focusing on the manufacture and sale of speakers and amplifiers for more than ten years.

QC:
All our products comply with international quality standards.

Our Power:
The factory area is 5000-10000㎡, with an annual output of 50 million to 100 million US dollars.

Technical Team:
The company was founded in 2008, with a team of 50-100 people and a 100% rapid response rate.


We are:

Huiyin Audio is a professional speaker and amplifier supplier located in Guangzhou, China. We are committed to providing mid-to-high-end audio products, including professional audio speakers, car audio speakers, cabinet speakers and amplifiers. Since its establishment in 2008, our joint factory has a complete high-quality supply chain, an excellent management team, and is capable of providing customers with excellent services and high-quality products at affordable prices!

We have:
In recent years, Huiyin Audio Sub-factory has introduced a series of advanced equipment, including automated production lines, high-efficiency magnetizers, impact applicators and temperature testing machines. Huiyin Audio was rated as a high-tech enterprise in 2017.

To adapt to the customer's market, we can customize professional speakers and amplifiers for them according to their needs. ODM and OEM orders are welcome!
