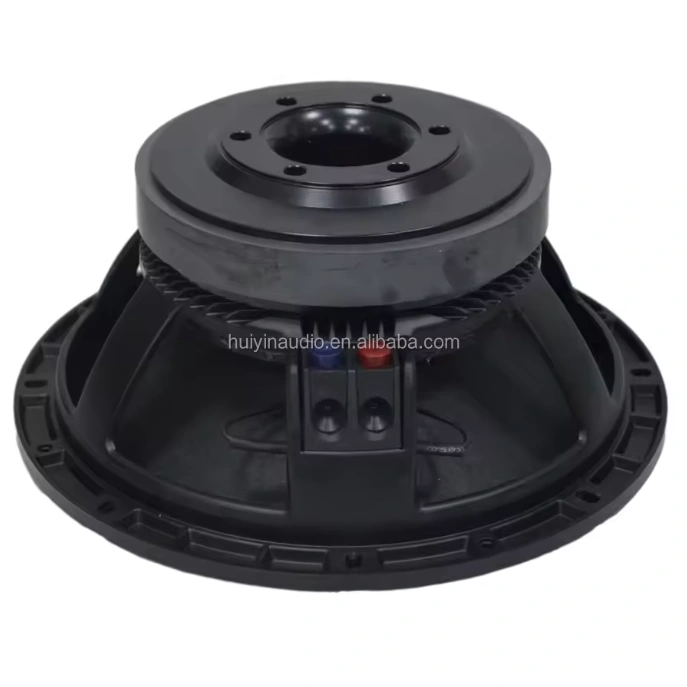

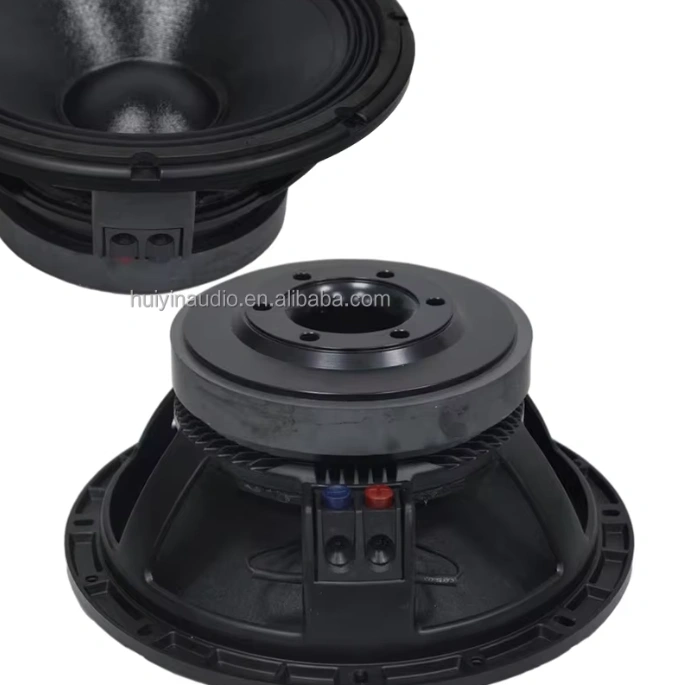

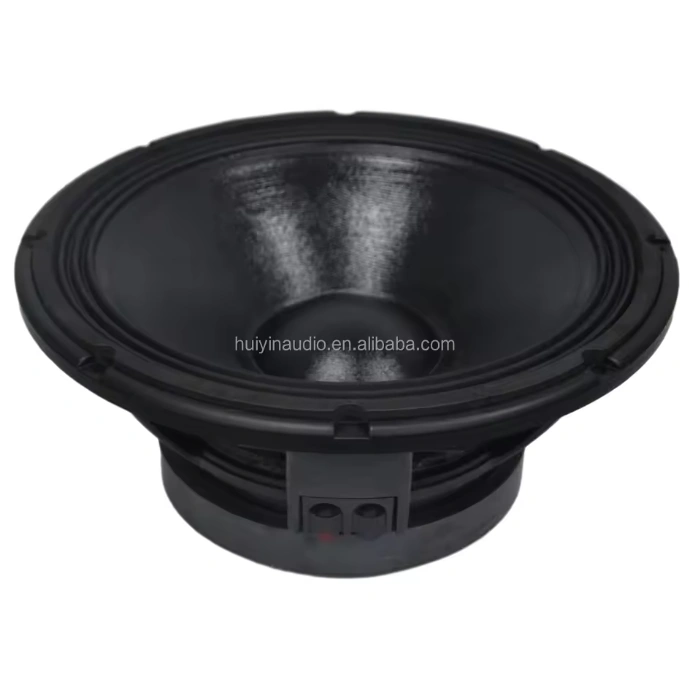

HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array

SKU:
From Trumbosound HYW-1286-002 is a 12inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.The speaker is equipped with high-quality carbon fiber waterproof material, which is light in weight, good in rigidity, and can transmit sound farther, making it the best partner for line array speaker system
0.0 (0 Reviews)
0 Sold
$0.00 $40.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$38.00
100-1000
Quantity
-
+
0 * $40 = $0
save $0.00
Add to Favorites (0)
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
1/1
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • HYW-1286-002 Low Price 12 Inch RCF Speaker Mid Bass RMS 500W Pro Audio RCF Woofer Speaker For Line Array
  • Product details
  • Company profile
Please be sure to confirm the shipping fee with customer service before payment,
or contact Whatsapp: +8618033242614

New RCF technology creates extraordinary sound quality
The speaker unit adopts advanced RCT technology, which is a crystallization of a variety of innovative technologies

Full-band coverage, seamless connection
Although it is called a midrange speaker unit, it has excellent full-band coverage capabilities




Parmeter
Model HYW-1286-002
Nominal diameter 12 inch
DC Resistance 6.2Ω
BL Factor 19.93
Effective Moving Mass 64.08
Total Factor(QTS) 0.32
Electrical Factor(QMS) 9.02
Mechanical Factor(QES) 0.34
Compliance(CMS) 0.13
Equivalent Cas Air Load(VAS) 50.53
Resonance Frequency(FS) 54.41
Effettive Pistom Area(SD) 0.05
η(Eta Zero) 2.37

General Specificatons
Nominal Diameter 12 inch
Nominal Impedance 8Ω
AES power Handling AES 500W
Continuous program power 1000W
Sensitivity 1w/1m 97dB
Frequency Range 50HZ-2KHZ
Voice Coil Diameter 86mm
Winding Material EICCAW
Former Material GBF
Winding Depth 15mm
Magnetic Gap Depth 10mm
surround material Paper cone cloth edge
surround Design W General Magnetics
Magnet 190X95X25  Neodymium magnet

Mounting&Shipping Information
Overall Diameter 320mm
Bolt circle Diameter 299-8-Ф9
Baffle Cutout Diameter 280mm
Depth 145mm
Net Weight净 7.26KG
Shipping Weight 9.26KG
Shipping Box(Single) 325×325×150mm


Features
  • Made of high-end waterproof material,it can be use outdoors confidence
  • 1000W continuous high powers,sufficient output energy
  • lightweight,good rigidity,sound can be transmitted farther
  • wide frequency response,can better display the sound from low frequency to high frequency
  • Provides a richer and more realistic auditory experience

Application

  • Outdoor Weddings
  • Mobile performance stage
  • Line array system installation
