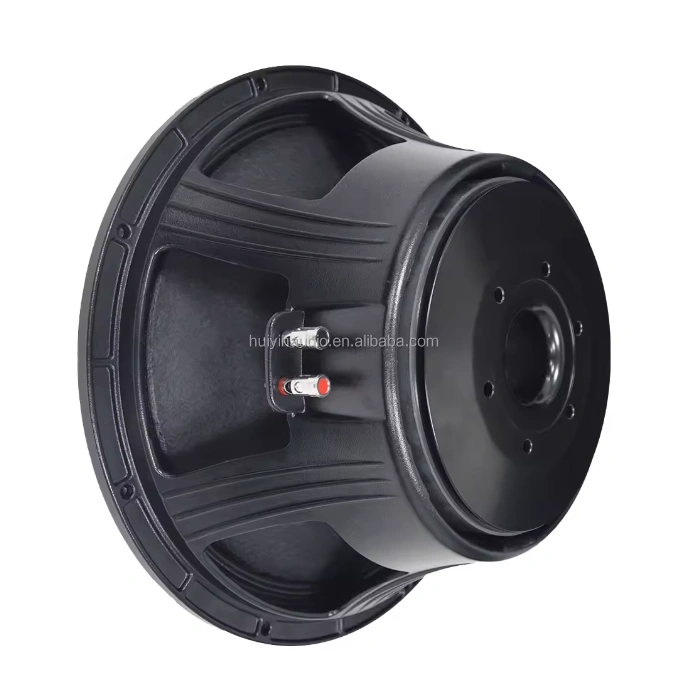

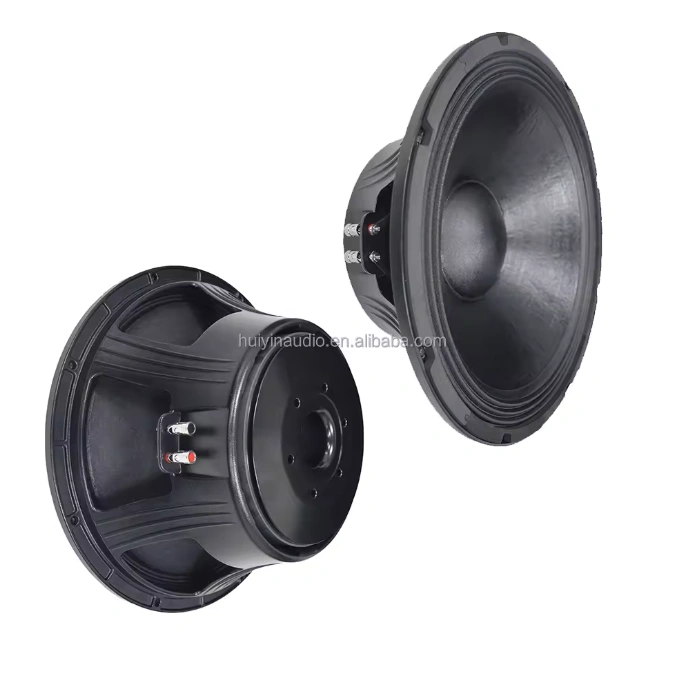

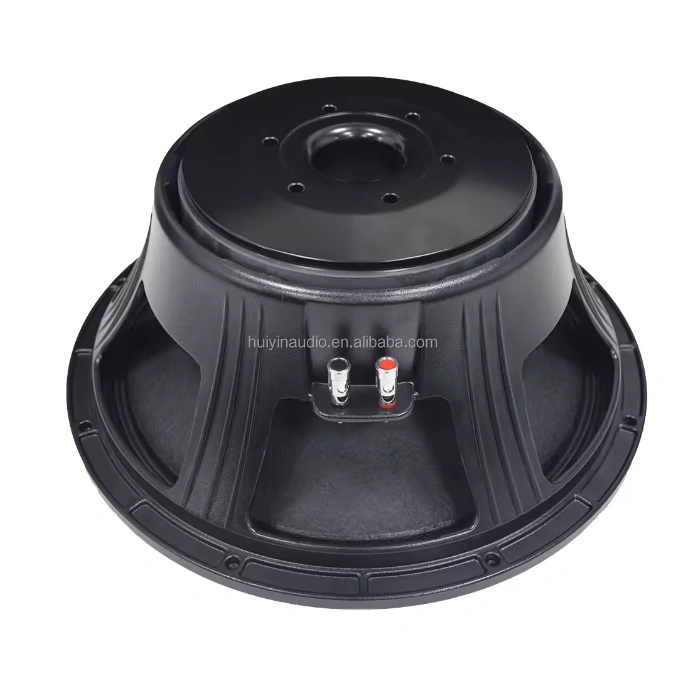

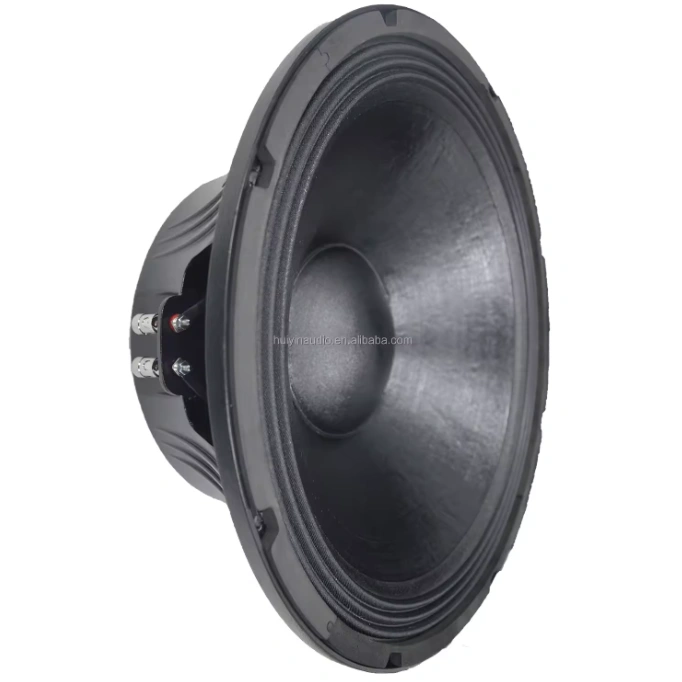

From Huiyin Audio's HYW-15100-053 is a 15-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.
| Model | HYW-15100-053 |
| Nominal diameter | 15 inch |
| DC Resistance | 5.6Ω |
| BL Factor | 20.44 |
| Effective Moving Mass | 121.55 |
| Total Factor(QTS) | 0.69 |
| Electrical Factor(QMS) | 8.59 |
| Mechanical Factor(QES) | 0.75 |
| Compliance(CMS) | 0.03 |
| Equivalent Cas Air Load(VAS) | 40.01 |
| Resonance Frequency(FS) | 73.82 |
| Effettive Pistom Area(SD) | 0.08 |
| η(Eta Zero) | 2.24 |
| Nominal Diameter | 15 inch |
| Nominal Impedance | 8Ω |
| AES power Handling AES | 700W |
| Continuous program power | 1400W |
| Sensitivity 1w/1m | 97dB |
| Frequency Range | 73HZ-2KHZ |
| Voice Coil Diameter | 100mm |
| Winding Material | EISV/Inner and outer layers |
| Former Material | GBF |
| Winding Depth | 24mm |
| Xmax | 10mm |
| surround material | Paper cone cloth edge |
| surround Design | Type W |
| Magnet | 210X110X25 Ferrite |
| Overall Diameter | 390mm |
| Bolt circle Diameter | 371-8-6.5 |
| Baffle Cutout Diameter | 251.4mm |
| Depth | 165mm |
| Net Weight | 10.3KG |
| Shipping Weight | 12.6KG |
| Shipping Box(Single) | 391×391×166mm |
|
