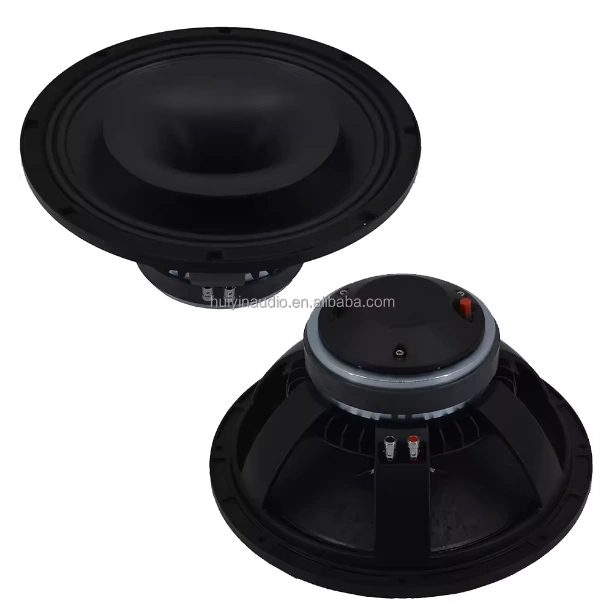

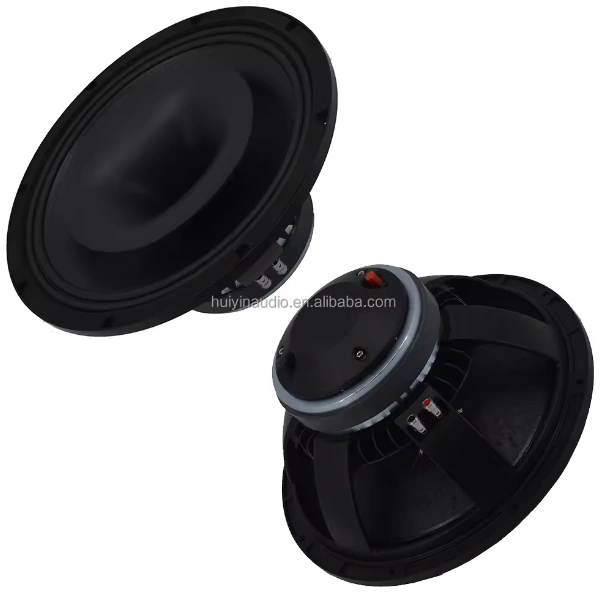

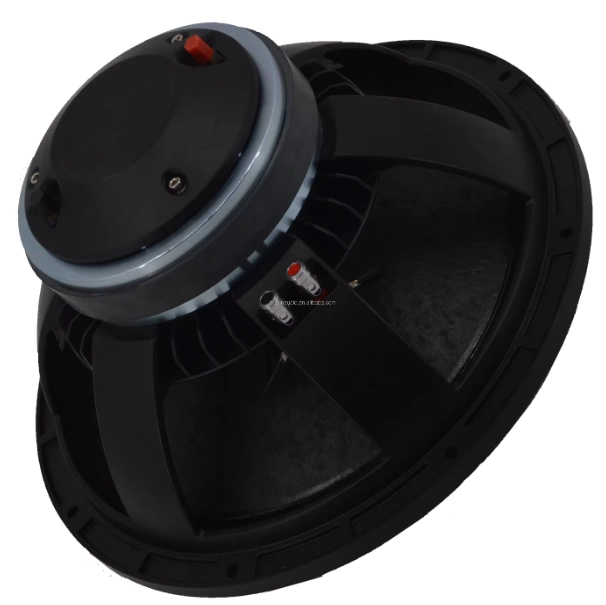

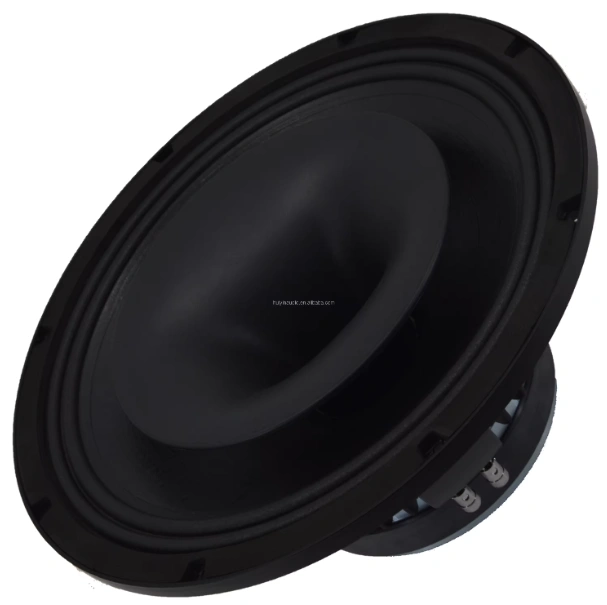

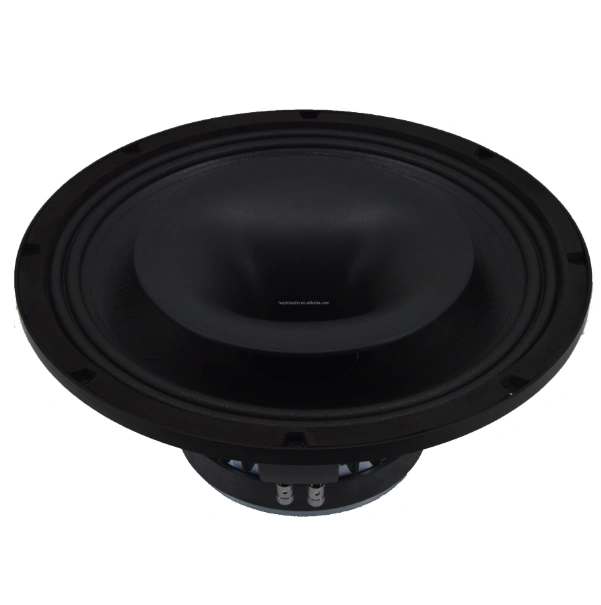

Trumbosound 15-Inch 5000W Dual Ohm Coaxial Speaker | Deep Bass Audio

Name: Trumbosound 15-Inch 5000W Dual Ohm Coaxial Speaker | Deep Bass Audio
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-1575-076
Price: 61.77 USD
Availability: InStock

Using the 15-inch 75-core coaxial speaker of Trumbosound, you can experience the perfect sound effects from low frequency band to high frequency band. It combines the latest Hi-Fi technology with high-end professional audio quality. The ultra-wide frequency response range, smooth tone and low distortion frequency response can make the audience far away enjoy loud and clear audio.

0.0 (0 Reviews)

0 Sold

$61.77

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Product details
Company profile

Experience unparalleled sound

It can achieve the effect of a point sound source, the sound propagation is more concrete, and the audience can feel the source and position of the sound more clearly.
The frequency response of the sound is consistent, which can provide a more natural and smooth sound quality.
The speaker has two units, treble and bass, which can reduce the installation space.
It can improve the emotionality of the sound in a complex acoustic environment

Durable material

High strength and high rigidity
Light weight
Good fatigue resistance
Low damping coefficient
Good stability

Parmeter

Model	HYW-1575-076
Nominal diameter	15 inch
DC Resistance(RE)	5.2Ω
BL Factor(BL)	14.5810
Effective Moving Mass	94.6541
Total Factor(QTS)	0.5025
Electrical Factor(QMS)	0.6632
Mechanical Factor(QES)	0.1287
Compliance(CMS)	0.2545
Equivalent Cas Air Load(VAS)	123.7135
Resonance Frequency(FS)	45.5930
Effettive Pistom Area(SD)	0.0830
η(Eta Zero)	1.6972

General Specificatons

Nominal Diameter	15 inch
Nominal Impedance	8Ω
AES power Handling AES	500W
Continuous program power	1000W
Sensitivity 1w/1m	99dB
Frequency Range	45HZ-2.5KHZ
Voice Coil Diameter	75mm
Winding Material	Aluminum wire inner and outer layer 1
Former Material	glassfiber
Winding Depth	17mm
Xmax	12mm
surround material	Carbon fiber selvedge
surround Design	Type W
Magnet	Ferrite

HF Drivers-3Inches

General Specificatons

Nominal Impedance	8Ω
AES power Handling	100W
Continuous program power	200W
Sensitivity 1w/1m	108dB
Frequency Range	600HZ-20KHZ
Voice Coil Diameter	75mm
Winding Materia	Aluminum wire inner and outer layer 1
Former Material	glassfiber
Diaphragm Material	Titanium film

Mounting&Shipping Information

Overall Diameter	395mm
Bolt circle Diameter	375-8-Ф6.5
Baffle Cutout Diameter	360mm
Depth	210mm
Net Weight	9.2KG
Shipping Weight	9.6KG
Shipping Box(Single)	396×396×220mm

Features

Good heat dissipation, high coercivity and magnetic stability
High temperature resistance, high precision, good practicality and preservation
High sensitivity makes it easier to drive, stable and safe performance
Strong sound expression, more realistic listening experience

Carbon fiber fabric edge has strong high temperature resistance and corrosion resistance

Application

Outdoor Weddings
Mobile performance stage
Line array system installation

Our advantage

OEM/ODM:Professional speaker audio manufacturer, focusing on the manufacture and sale of speakers and amplifiers for more than ten years.
QC:All our products comply with international quality standards.
Our Power:The factory area is 5000-10000㎡, with an annual output of 50 million to 100 million US dollars.
Technical Team:The company was founded in 2008, with a team of 50-100 people and a 100% rapid response rate

About Us

Welcome to Trumbosound, where our passion for exceptional audio performance drives us to deliver top-tier speakers and amplifiers. Founded in 2009 in Guangzhou, China, we specialize in both professional and car audio systems. Our commitment to quality resonates through every product, designed to bring unparalleled sound to your spaces.

Over the years, Trumbosound has embraced technological advances to enhance our product lineup. Our state-of-the-art facilities include automated production lines and specialized testing equipment, ensuring every item meets rigorous standards. In 2017, our dedication to innovation was recognized when we were designated as a high-tech enterprise.

Trumbosound offers a broad range of audio products, meticulously crafted to suit diverse needs. From booming car speakers to refined professional audio systems, our products promise durability and clarity. We also pride ourselves on our ability to offer customized solutions, catering to unique market demands with flexibility in design and functionality.

FAQ
Who are we?
Trumbosound specializes in high-quality car and professional audio systems, dedicated to delivering superior sound experiences.

How can we guarantee quality?
We ensure quality through rigorous testing and by utilizing advanced manufacturing technologies in our state-of-the-art facilities.

What can you buy from us?
We offer a wide range of audio products including car speakers, professional audio systems, and custom audio solutions.

Why should you buy from us and not from other suppliers?
Trumbosound stands out for its commitment to innovation, quality, and customer-focused solutions in audio technology.

What services can we provide?
We provide comprehensive customer support, customization options for our audio products, and expert guidance on all our offerings.

From Trumbosound's HYW-1575-076 is an 15-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties. Its excellent heat dissipation ability provides a stable output capacity for the speaker, so that the speaker can maintain stable performance and good sound quality at high output.
