Home > Professional Horns > HYW-18100-005 Subwoofer 18 Inch RCF Mid Bass Speaker High Power 800W Professional Audio Line Array For Concert Events

1/1

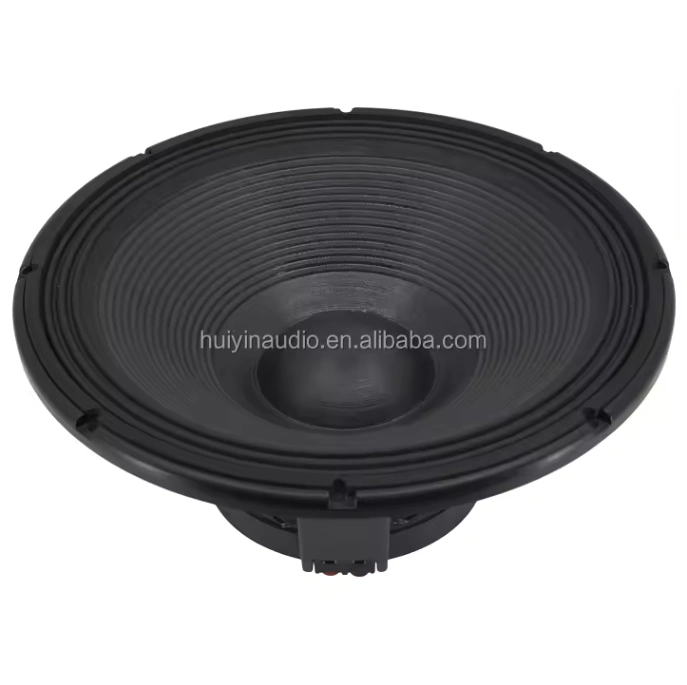

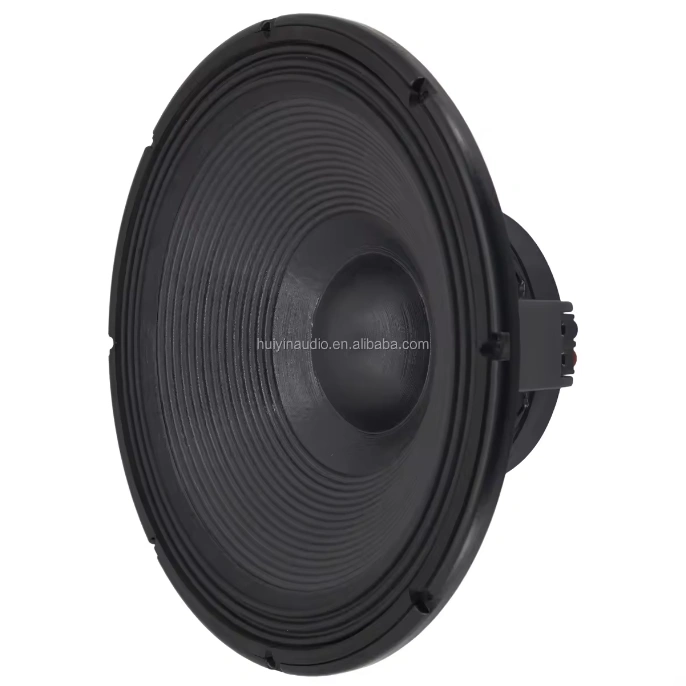

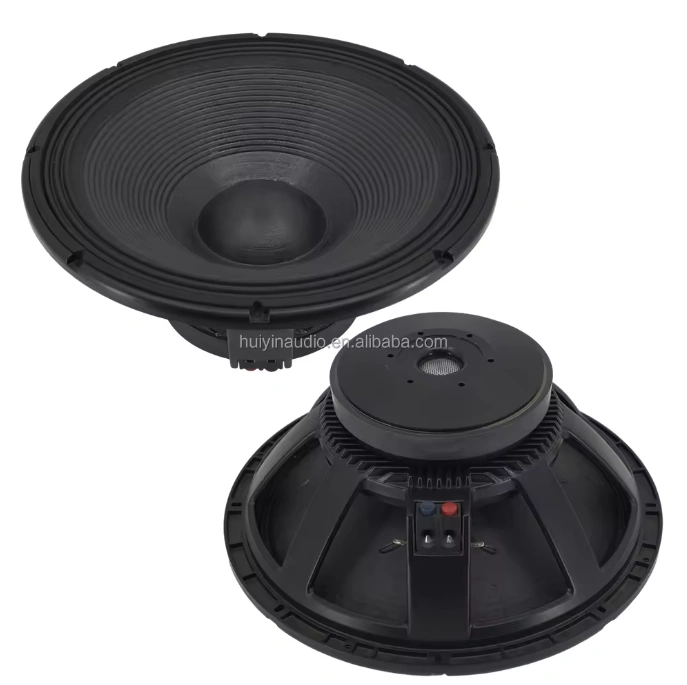

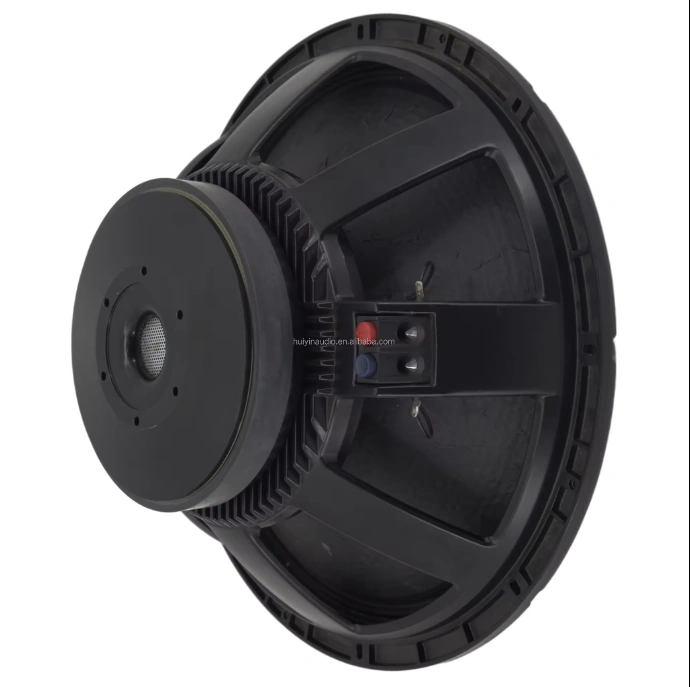

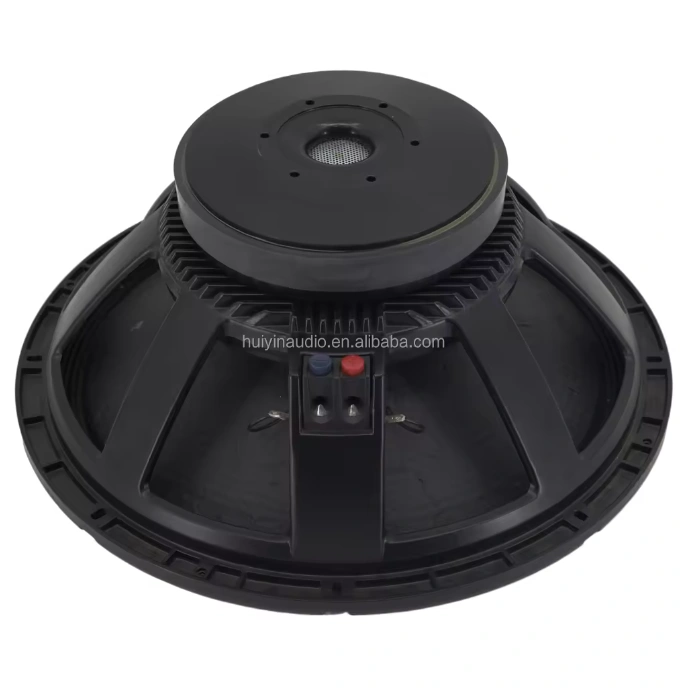

HYW-18100-005 Subwoofer 18 Inch RCF Mid Bass Speaker High Power 800W Professional Audio Line Array For Concert Events

Name: HYW-18100-005 Subwoofer 18 Inch RCF Mid Bass Speaker High Power 800W Professional Audio Line Array For Concert Events
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-18100-005
Price: 61 USD
Availability: InStock

From Trumbosound's HYW-18100-005 is an 18-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties. Its excellent heat dissipation ability provides a stable output capacity for the speaker, so that the speaker can maintain stable performance and good sound quality at high output.

0.0 (0 Reviews)

0 Sold

$61.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Parmeter

Model	HYW-18100-005
Nominal diameter	18 inch
DC Resistance	5.8Ω
BL Factor	26.6589
Effective Moving Mass	211.8999
Total Factor(QTS)	0.3885
Electrical Factor(QMS)	6.0739
Mechanical Factor(QES)	0.4151
Compliance(CMS)	0.0819
Equivalent Cas Air Load(VAS)	177.0569
Resonance Frequency(FS)	38.1992
Effettive Pistom Area(SD)	0.1224
η(Eta Zero)	2.2826

General Specificatons

Nominal Diameter	18 inch
Nominal Impedance	8Ω
AES power Handling AES	800W
Continuous program power	1600W
Sensitivity 1w/1m	98dB
Frequency Range	40HZ-1.5KHZ
Voice Coil Diameter	100mm
Winding Material	Copper wire inner and outer layer solid winding
Former Material	glassfiber
Winding Depth	28.5mm
Magnetic Gap Depth	14mm
surround material	Paper cone cloth edge
surround Design	W
Magnet	Ferrite

Mounting&Shipping Information

Overall Diameter	465mm
Bolt circle Diameter	442-8--6.5
Baffle Cutout Diameter	430mm
Depth	205mm
Net Weight净	13.3KG
Shipping Weight	14KG
Shipping Box(Single)	465×465×220mm

Features

- Good heat dissipation，High coercivity and magnetic stability
- High precision, high temperature resistance, good practicality and preservation
- High sensitivity makes it easier to drive, stable and safe performance
- The sound is expressive, less restrained, and the listening experience is more realistic
- Wide frequency response, can better display the sound from low frequency to high frequency

Application

Outdoor Weddings
Mobile performance stage
Line array system installation
