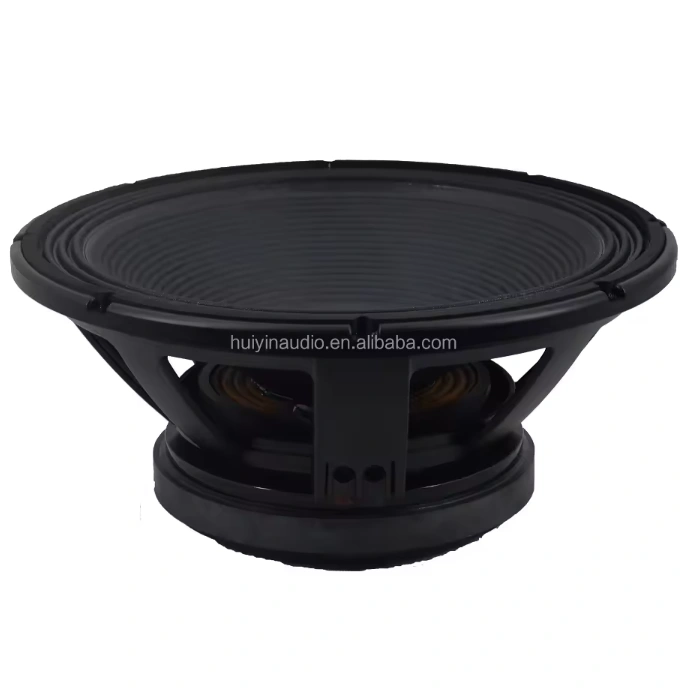

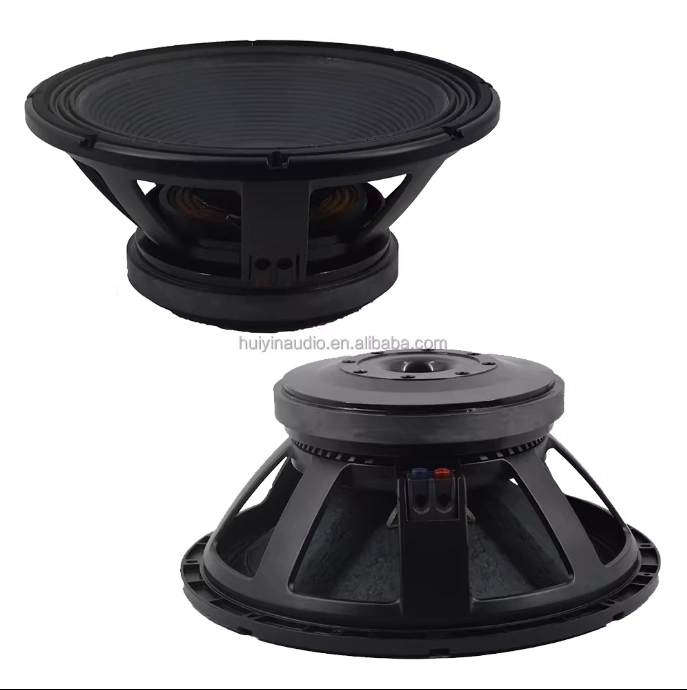

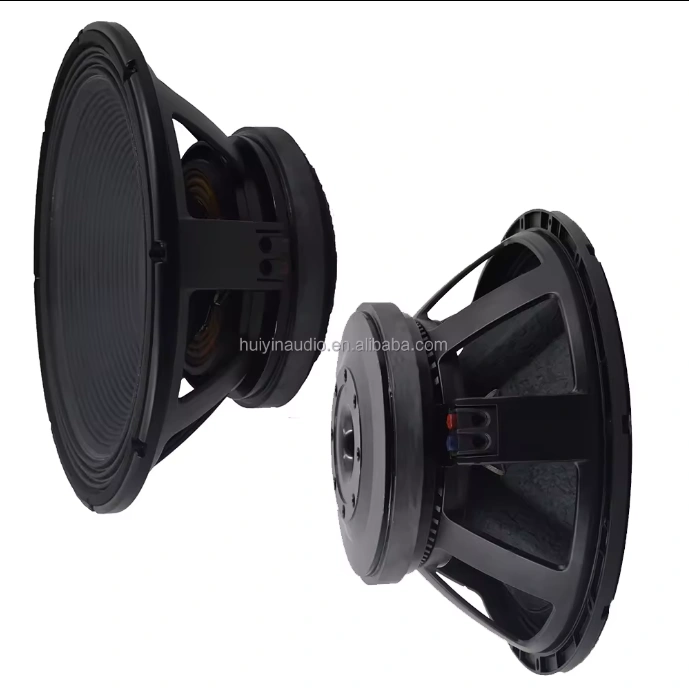

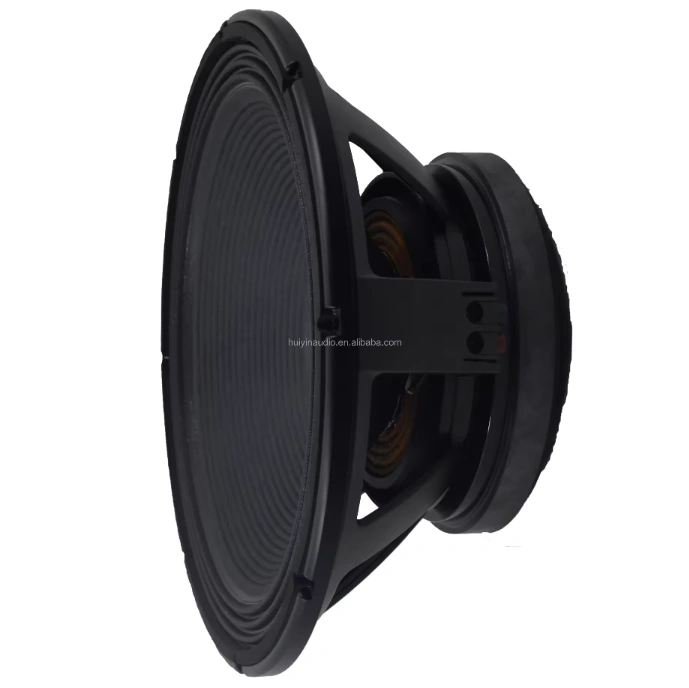

From Huiyin Audio's HYW-18125-017 is a 18-inch with 125 cores low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.
| Model | HYW-18125-017 |
| Nominal diameter | 18 inch |
| DC Resistance | 5.8Ω |
| BL Factor | 30.46 |
| Effective Moving Mass | 264.19 |
| Total Factor(QTS) | 0.33 |
| Electrical Factor(QMS) | 10.76 |
| Mechanical Factor(QES) | 0.34 |
| Compliance(CMS) | 0.06 |
| Equivalent Cas Air Load(VAS) | 114.14 |
| Resonance Frequency(FS) | 37.34 |
| Effettive Pistom Area(SD) | 0.12 |
| η(Eta Zero) | 2.07 |
| Nominal Diameter | 18 inch |
| Nominal Impedance | 8Ω |
| AES power Handling AES | 1500W |
| Continuous program power | 3000W |
| Sensitivity 1w/1m | 98dB |
| Frequency Range | 35HZ-3KHZ |
| Voice Coil Diameter | 125mm |
| Winding Material | EISV/Inner and outer layers |
| Former Material | BAF |
| Winding Depth | 26mm |
| Magnetic Gap Depth | 14mm |
| surround material | Paper cone cloth edge |
| surround Design | W |
| Magnet | Ferrite |
| Overall Diameter | 466mm |
| Bolt circle Diameter | 442-8--6.5 |
| Baffle Cutout Diameter | 422mm |
| Depth | 210mm |
| Net Weight净 | 20.4KG |
| Shipping Weight | 23KG |
| Shipping Box(Single) | 467×467×213mm |
|
