Home > Professional Horns > HYW-18125-021 Neodymium RCF 18 Inch Subwoofer Driver 1200W Pro Audio Sound System Speaker For Events Party Nightclub

1/1

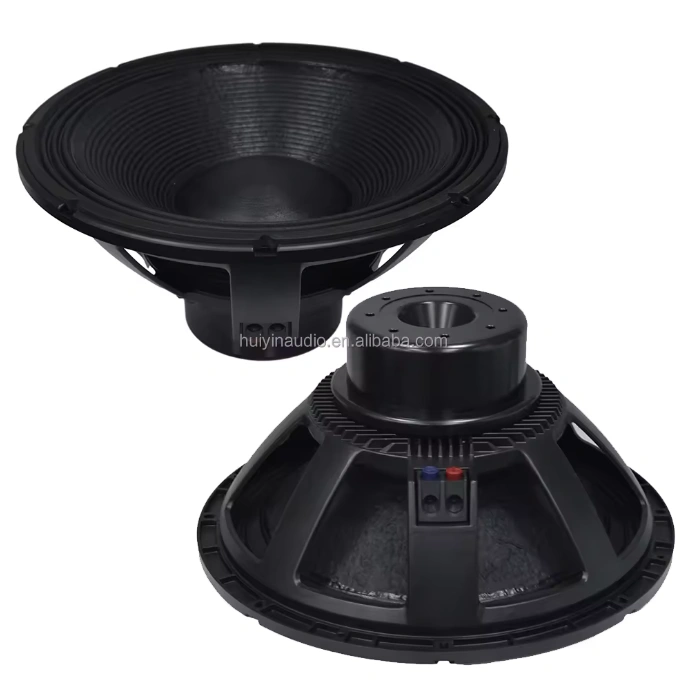

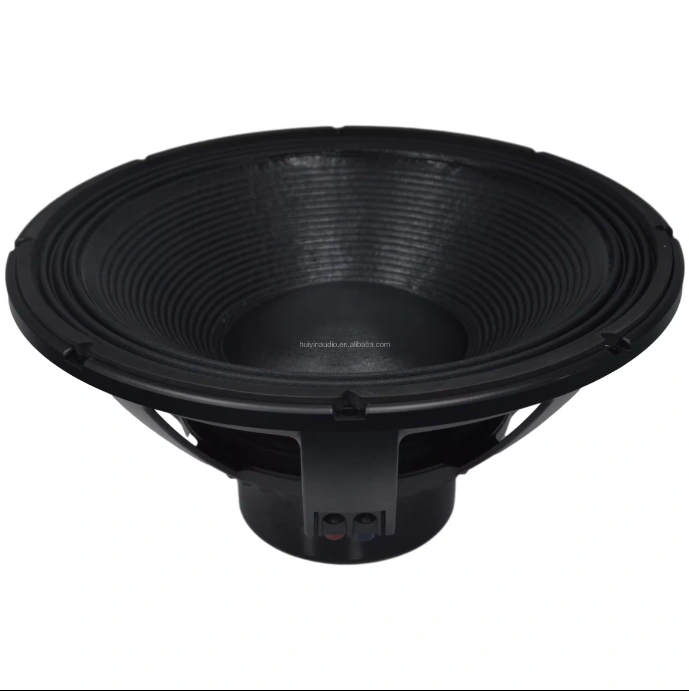

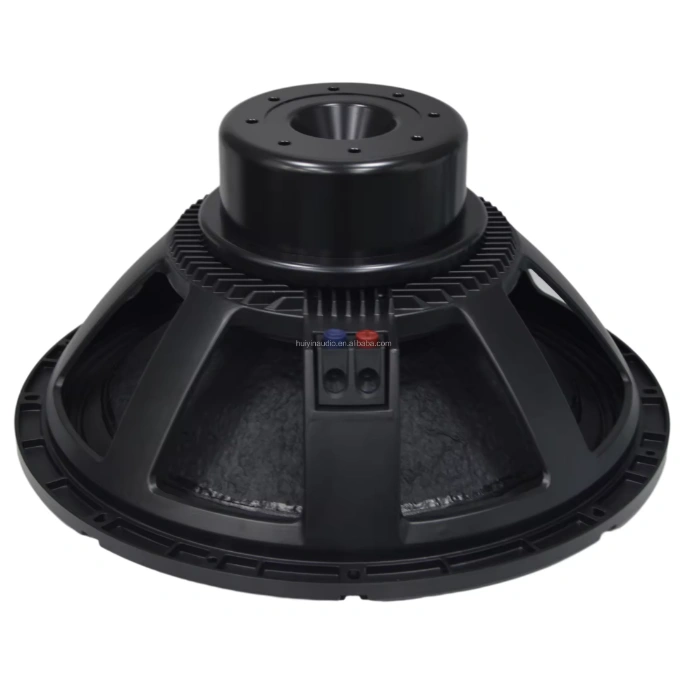

HYW-18125-021 Neodymium RCF 18 Inch Subwoofer Driver 1200W Pro Audio Sound System Speaker For Events Party Nightclub

Name: HYW-18125-021 Neodymium RCF 18 Inch Subwoofer Driver 1200W Pro Audio Sound System Speaker For Events Party Nightclub
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-18125-021
Price: 142 USD
Availability: InStock

From Trumbosound HYW-18125-021 is a 18-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties.The speaker is equipped with high-quality carbon fiber waterproof material, which is light in weight, good in rigidity, and can transmit sound farther, making it the best partner for line array speaker system.

0.0 (0 Reviews)

0 Sold

$142.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Parmeter

Model	HYW-18125-021
Nominal diameter	18 inch
DC Resistance	5.2Ω
BL Factor	17.98
Effective Moving Mass	295.45
Total Factor(QTS)	0.93
Electrical Factor(QMS)	5.69
Mechanical Factor(QES)	1.12
Compliance(CMS)	0.06
Equivalent Cas Air Load(VAS)	126.96
Resonance Frequency(FS)	37.62
Effettive Pistom Area(SD)	0.12
η(Eta Zero)	0.57

General Specificatons

Nominal Diameter	18 inch
Nominal Impedance	8Ω
AES power Handling AES	1200W
Continuous program power	2400W
Sensitivity 1w/1m	96dB
Frequency Range	37HZ-3KHZ
Voice Coil Diameter	125mm
Winding Material	EISV/Inner and outer layers
Former Material	BAF
Winding Depth	26mm
Magnetic Gap Depth	15mm
surround material	Paper cone cloth edge
surround Design	W
Magnet	Neodymium magnet

Mounting&Shipping Information

Overall Diameter	466mm
Bolt circle Diameter	442-8--6.5
Baffle Cutout Diameter	422mm
Depth	228mm
Net Weight净	13.8KG
Shipping Weight	15.3KG
Shipping Box(Single)	467×467×230mm

Features

Made of high-end waterproof material,it can be use outdoors confidence.
2400W continuous high powers,sufficient output energy
lightweight,good rigidity,sound can be transmitted farther
wide frequency response,can better display the sound from low frequency to high frequency
Provides a richer and more realistic auditory experience

Application

Outdoor Weddings
Mobile performance stage
Line array system installation

Our advantage
OEM/ODM:Professional speaker audio manufacturer, focusing on the manufacture and sale of speakers and amplifiers for more than ten years.

QC:All our products comply with international quality standards.

Our Power:The factory area is 5000-10000㎡, with an annual output of 50 million to 100 million US dollars.

Technical Team:The company was founded in 2008, with a team of 50-100 people and a 100% rapid response rate

We are:
Huiyin Audio is a professional speaker and amplifier supplier located in Guangzhou, China. We are committed to providing mid-to-high-end audio products, including professional audio speakers, car audio speakers, cabinet speakers and amplifiers. Since its establishment in 2008, our joint factory has a complete high-quality supply chain, an excellent management team, and is capable of providing customers with excellent services and high-quality products at affordable prices!

We have:
In recent years, Huiyin Audio Sub-factory has introduced a series of advanced equipment, including automated production lines, high-efficiency magnetizers, impact applicators and temperature testing machines. Huiyin Audio was rated as a high-tech enterprise in 2017.

To adapt to the customer's market, we can customize professional speakers and amplifiers for them according to their needs. ODM and OEM orders are welcome!

COMPANY OVERVIEW

Company Album

Business type	Manufacturer	Country / Region	Guangdong, China
Main Products	car subwoofer,professional subwoofer, perfessional speaker, amplifier,high power amplifier for car, tweeter, pa speaker box,line array speaker ect	Total employees	50- 100 People
Year established	2008	Certifications	-
Product Certifications	CE	Patents	-
Trademarks		Main Markets	Domestic Market 60.00%

PRODUCT CAPACITY

Factory Information

Factory Size	Below 1,000 square meters
Factory Country/Region	No.28, Sanle East Road, Shunjiang Community, Beijiao Town, Shunde District, Foshan City
No. of Production Lines	5
Contract Manufacturing	OEM Service Offered
Annual Output Value	US$1 Million - US$2.5 Million
