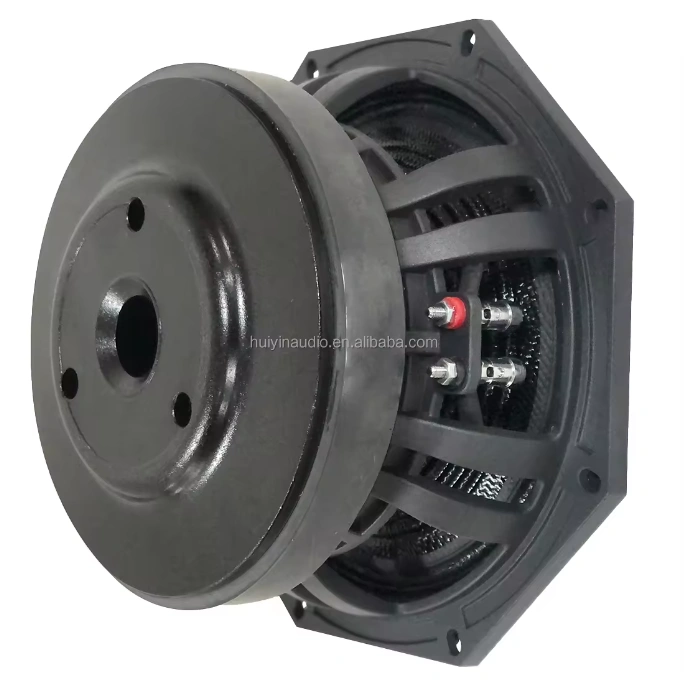

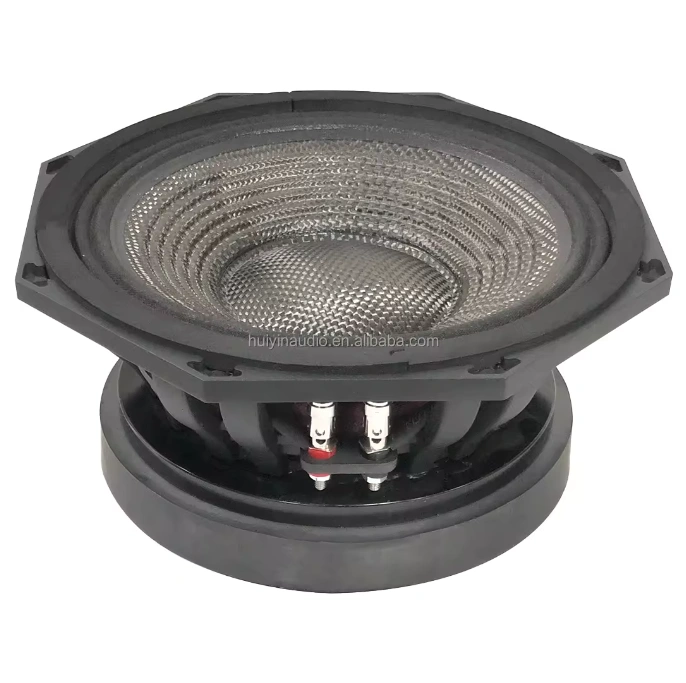

HYW-865-011 Mini 8 Inch PA Speakers Big Power RMS 300W Line Array Audio Sound System DJ Show Home Theatre Woofer

Name: HYW-865-011 Mini 8 Inch PA Speakers Big Power RMS 300W Line Array Audio Sound System DJ Show Home Theatre Woofer
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-865-011
Price: 35 USD
Availability: InStock

From Trumbosound's HYW-865-003 is an 8-inch low-frequency speaker designed for excellent power handling. It is a daily driver for low-frequency lovers and the best solution for outdoor weddings and parties. Its excellent heat dissipation ability provides a stable output capacity for the speaker, so that the speaker can maintain stable performance and good sound quality at high output.

0.0 (0 Reviews)

0 Sold

$35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Product details
Company profile

Parmeter

Model	HYW-865-011
Nominal diameter	8 inch
DC Resistance	5.2Ω
BL Factor	15.62
Effective Moving Mass	29.05
Total Factor(QTS)	0.39
Electrical Factor(QMS)	7.97
Mechanical Factor(QES)	0.41
Compliance(CMS)	0.07
Equivalent Cas Air Load(VAS)	5.08
Resonance Frequency(FS)	107.16
Effettive Pistom Area(SD)	0.02
η(Eta Zero)	1.45

General Specificatons

Nominal Diameter	8 inch
Nominal Impedance	8Ω
AES power Handling AES	300W
Continuous program power	600W
Sensitivity 1w/1m	95dB
Frequency Range	105HZ-2KHZ
Voice Coil Diameter	65mm
Winding Material	PHT/CCAW inner and outer 1 layer
Former Material	BAF
Winding Depth
Xmax	10mm
surround material	Carbon fiber basin edge
surround Design	Type M
Magnet	170X75X20 Ferrite

Mounting&Shipping Information

Overall Diameter	207mm
Bolt circle Diameter	208-8-Ф5X8
Baffle Cutout Diameter	183mm
Depth	115mm
Net Weight	5.25KG
Shipping Weight	5.8KG
Shipping Box(Single)	210×210×120mm

Features

Good heat dissipation, high coercivity and magnetic stability
High temperature resistance, high precision, good practicality and preservation
High sensitivity makes it easier to drive, stable and safe performance
Strong sound expression, more realistic listening experience
Carbon fiber fabric edge has strong high temperature resistance and corrosion resistance

Application

Outdoor weddings
Mobile perfomance stage
Line array system installation

Our advantage

OEM/ODM:Professional speaker audio manufacturer, focusing on the manufacture and sale of speakers and amplifiers for more than ten years.

QC:All our products comply with international quality standards.

Our Power:The factory area is 5000-10000㎡, with an annual output of 50 million to 100 million US dollars.

Technical Team:The company was founded in 2008, with a team of 50-100 people and a 100% rapid response rate.

We are:

Huiyin Audio is a professional speaker and amplifier supplier located in Guangzhou, China. We are committed to providing mid-to-high-end audio products, including professional audio speakers, car audio speakers, cabinet speakers and amplifiers. Since its establishment in 2008, our joint factory has a complete high-quality supply chain, an excellent management team, and is capable of providing customers with excellent services and high-quality products at affordable prices!

We have:

In recent years, Huiyin Audio Sub-factory has introduced a series of advanced equipment, including automated production lines, high-efficiency magnetizers, impact applicators and temperature testing machines. Huiyin Audio was rated as a high-tech enterprise in 2017.

To adapt to the customer's market, we can customize professional speakers and amplifiers for them according to their needs. ODM and OEM orders are welcome!
