Home > Professional Speakers > Trumbosound LA10+LA18B Passive Professional Line Array Speakers For Stage

1/1

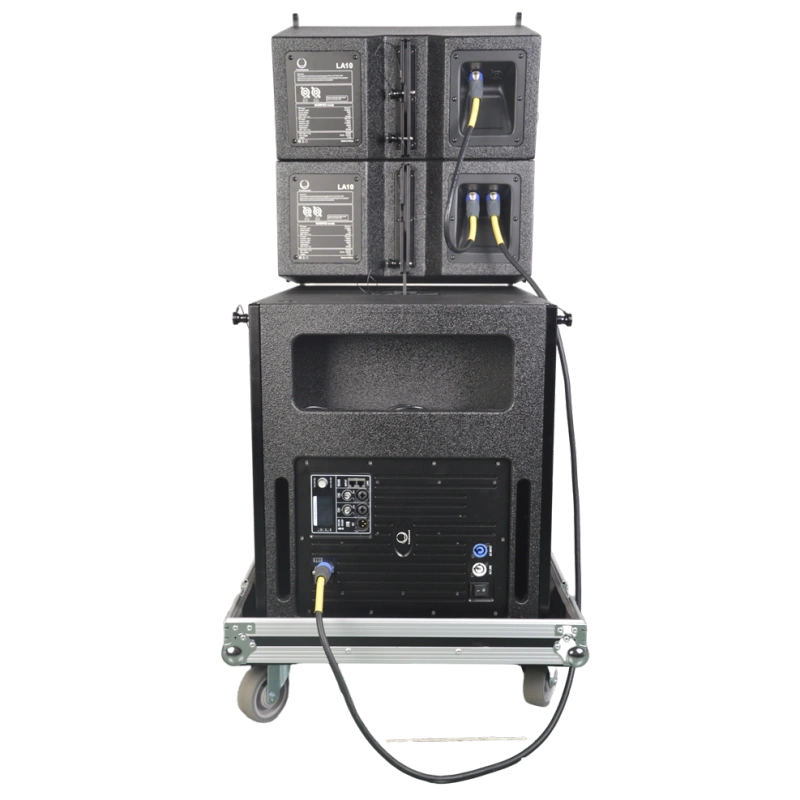

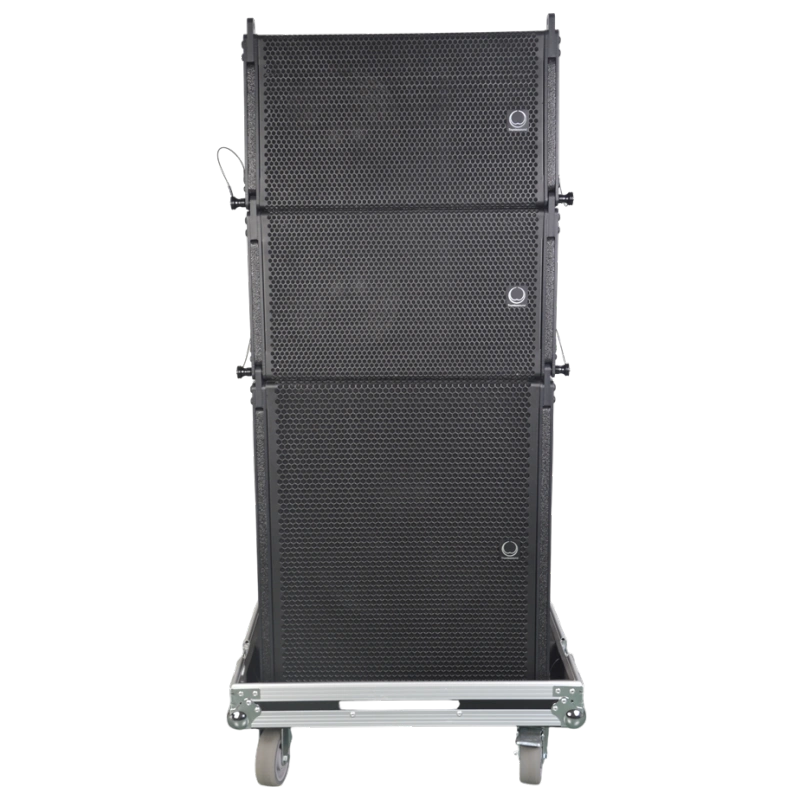

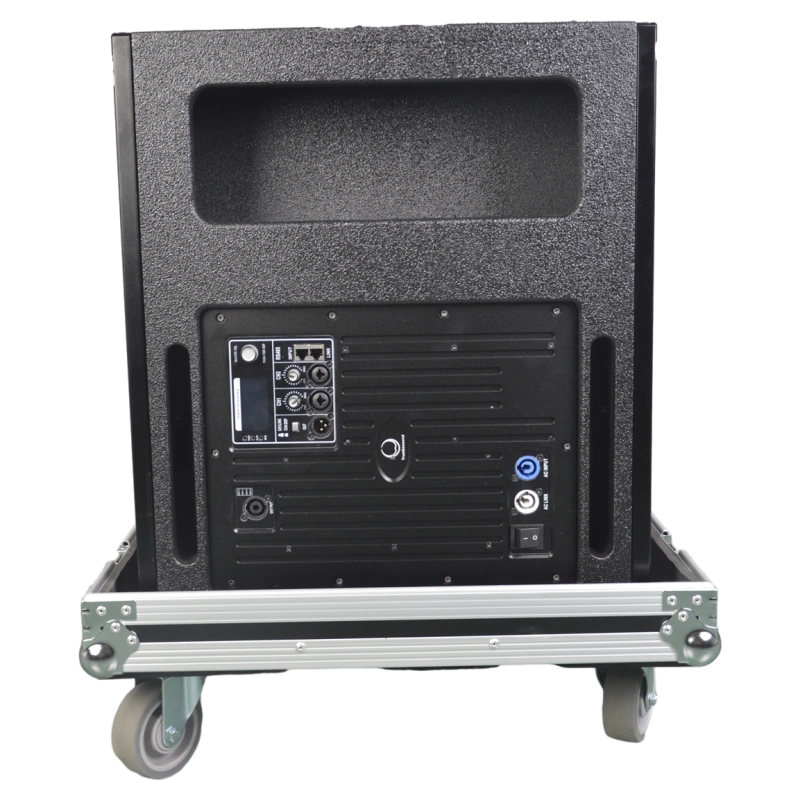

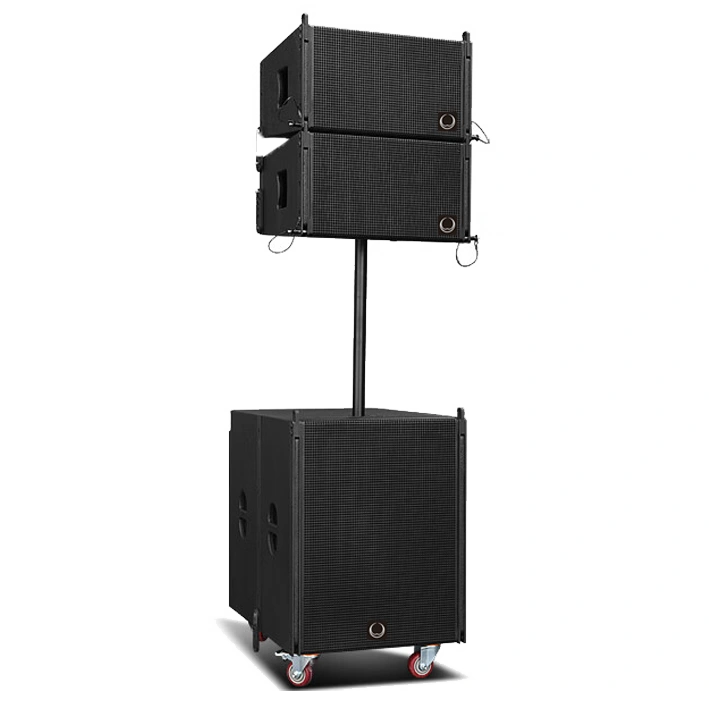

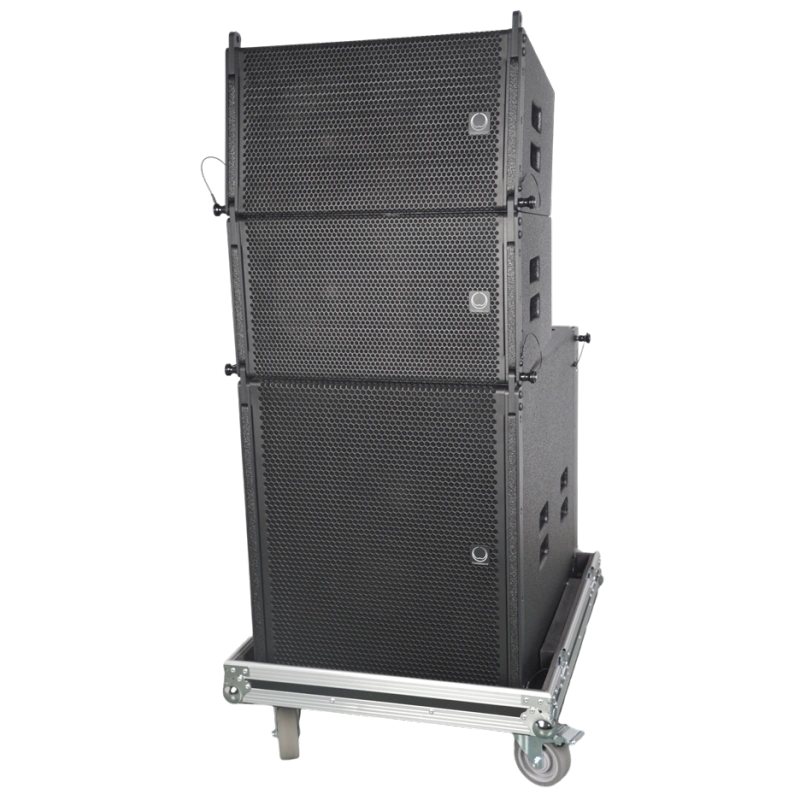

Trumbosound LA10+LA18B Passive Professional Line Array Speakers For Stage

Name: Trumbosound LA10+LA18B Passive Professional Line Array Speakers For Stage
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: LA10+LA18B
Price: 5300 USD
Availability: InStock
Rating: 4.5 (2 reviews)

If your stage requires a large line array speaker, welcome to Trumbosound. LA10+LA18B is a professional line array speaker, consisting of two 10-inch full-range speakers and an 18-inch subwoofer. It can maintain sound coverage even in large outdoor events, and is a good partner for your outdoor line array speakers.

4.5 (2 Reviews)

0 Sold

$5,300.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Super loud sound, bringing you the fun of outdoor disco

Excellent far-reaching coverage, delivering clear and powerful sound to far distances, ensuring that the entire audience area can get a high-quality listening experience.
Precise sound direction control can effectively avoid reverberation and blur caused by sound reflection.
Strong power carrying capacity, meeting the sound requirements of large-scale events.
Uniform sound field distribution, so that listeners in every position can hear relatively consistent volume and sound quality.
Flexible system configuration, for temporary venues or irregular shaped spaces, can well adapt to and optimize sound performance

Durable material

The speaker box is made of multi-layer board material, which is made of multi-layer thin templates glued together. It has excellent anti-bending and anti-voltage capabilities, reducing the impact of box deformation on sound quality. During transportation and frequent movement of the speaker, it can better withstand external pressure and impact and is not easily damaged.

Specification

	LA10	LA18B	R1300
System type	1 x 10-inch two-way two-driver curve array speaker	Single 18-inch subwoofer passive speaker
Frequency response	70Hz -18 kHz（±3）	40Hz-250Hz(±3dB) 35Hz-300Hz(-10 dB)	20Hz~20kHz，+1/-1dB
Sensitivity	:HF:103dB LF:100dB	100dB	0.775V
Nominal impedance	:HF:16Ω LF:16Ω	8Ω
rated power	:HF:80W LF:300W	800W	Stereo 8Ω): 2×1300W Stereo 4Ω): 2×1800W
Bass unit	1×10 inch neodymium magnet carbon fiber woofer (75mm voice coil	18-inch (100mm voice coil) neodymium magnet ultra-low driver
Tweeter	1×3 inch neodymium tweeter (75mm voice coil)
Nominal coverage angle	（H x V）:100°×10°
Maximum sound pressure level (SPL)	:HF:122/128 dB LF:124/130 dB	128dB/134dB
hanging accessories	Four-point hanging adjustable from 0°-10°
Connect socket	Professional NL4MP four-core socket 2 2+2-HF, 1+1-LF
Dimensions (W×D×H)	500x325x274（mm）	500×673×584（mm	88×483×390mm
Product net weight (kg)	17kg	45kg	23.8kg
Bridged mono mode 8Ω			3500W
Total harmonic distortion (THD)			≤0.5%
Damping coefficient:			≥200:1
Voltage amplification			(0.775V)
Signal-to-noise ratio (A-weighted)			≥97dB
Input impedance (rated)			20KΩ(balanced)/10KΩ(unbalanced)
Separation:			≥60dB
input connector			One balanced XLR per channel
Output connector (speaker connection interface)			4-POLE Speakon per channel
Compression ratio			20:1
power supply			AC 220V 50Hz~60Hz

Features

Selected high-quality and high-efficiency accessories
It is composed of a high-performance high-pressure neodymium tweeter and a low-distortion carbon fiber neodymium woofer.
High frequency, delicate and transparent
Thick and powerful low frequency
The speaker adopts high temperature resistant pure copper voice coil
The cabinet adopts precise CNC machining combined with complex slotting and wedging technology.
Change the hanging or stacking method to meet different occasions, convenient and safe

Application

Main PA for medium-sized PA systems
Mobile performances
gymnasium
Theater/theater/auditorium

Advantages

Advanced DSP Technology: Ensures precise audio management for optimal sound clarity and balance, making it ideal for live performances.
Robust Construction: Built to endure the rigors of both indoor and outdoor use, ensuring durability and reliability in various environments.
Versatile Performance: Capable of delivering powerful sound suitable for a range of venues from small gatherings to large concert stages.
High Power Output: Features a maximum SPL of 128 dB, providing clear and powerful sound even at high volumes.
Wide Coverage: Offers a wide dispersion of sound with a coverage angle of 80° x 80°, ensuring sound reaches a broad audience area.

About Us

Welcome to Trumbosound, where our passion for exceptional audio performance drives us to deliver top-tier speakers and amplifiers. Founded in 2009 in Guangzhou, China, we specialize in both professional and car audio systems. Our commitment to quality resonates through every product, designed to bring unparalleled sound to your spaces.

Over the years, Trumbosound has embraced technological advances to enhance our product lineup. Our state-of-the-art facilities include automated production lines and specialized testing equipment, ensuring every item meets rigorous standards. In 2017, our dedication to innovation was recognized when we were designated as a high-tech enterprise.

Trumbosound offers a broad range of audio products, meticulously crafted to suit diverse needs. From booming car speakers to refined professional audio systems, our products promise durability and clarity. We also pride ourselves on our ability to offer customized solutions, catering to unique market demands with flexibility in design and functionality.
