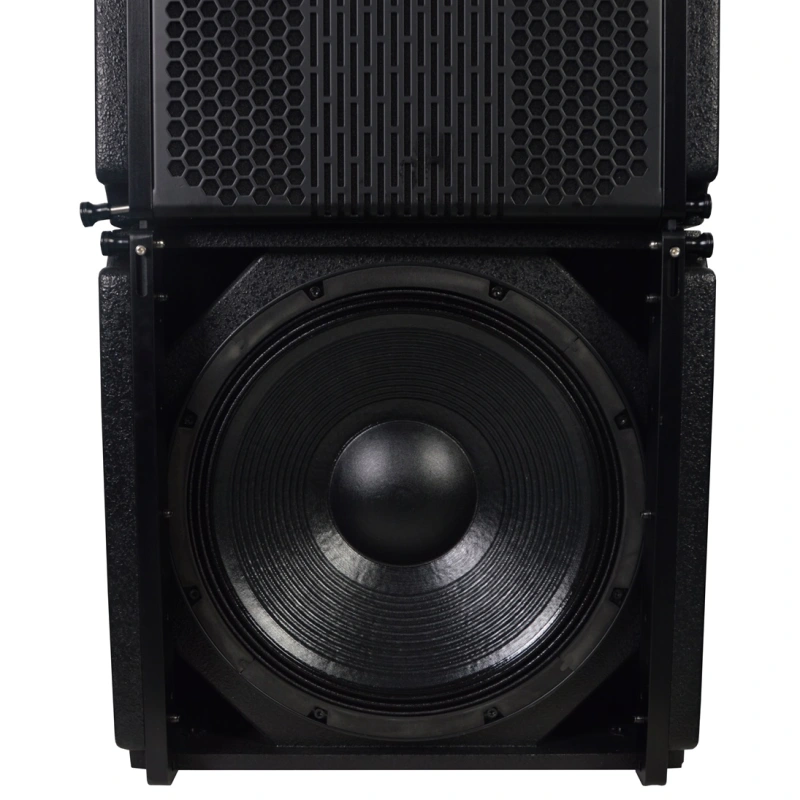

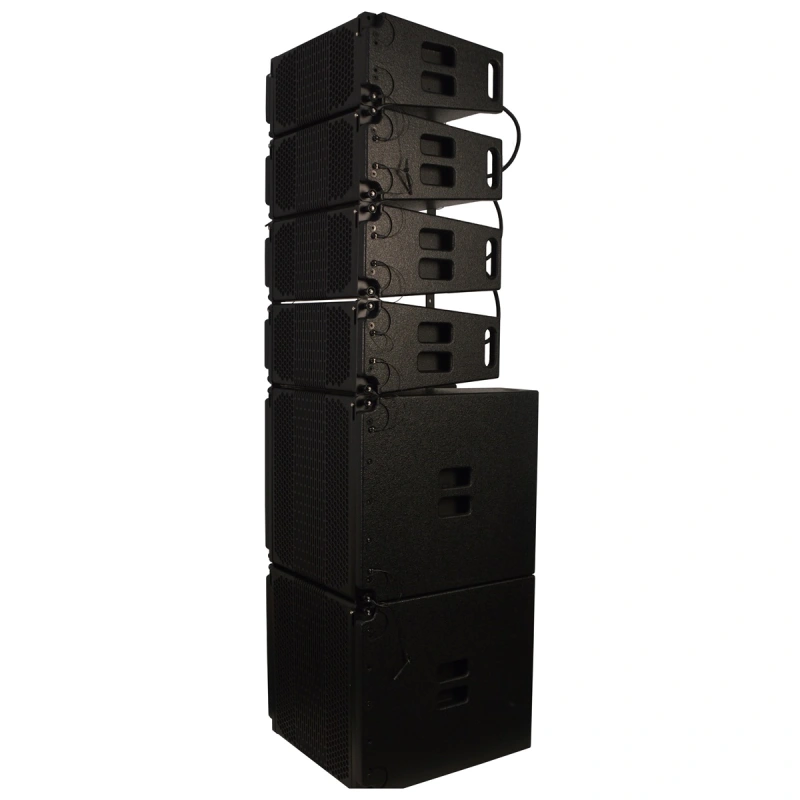

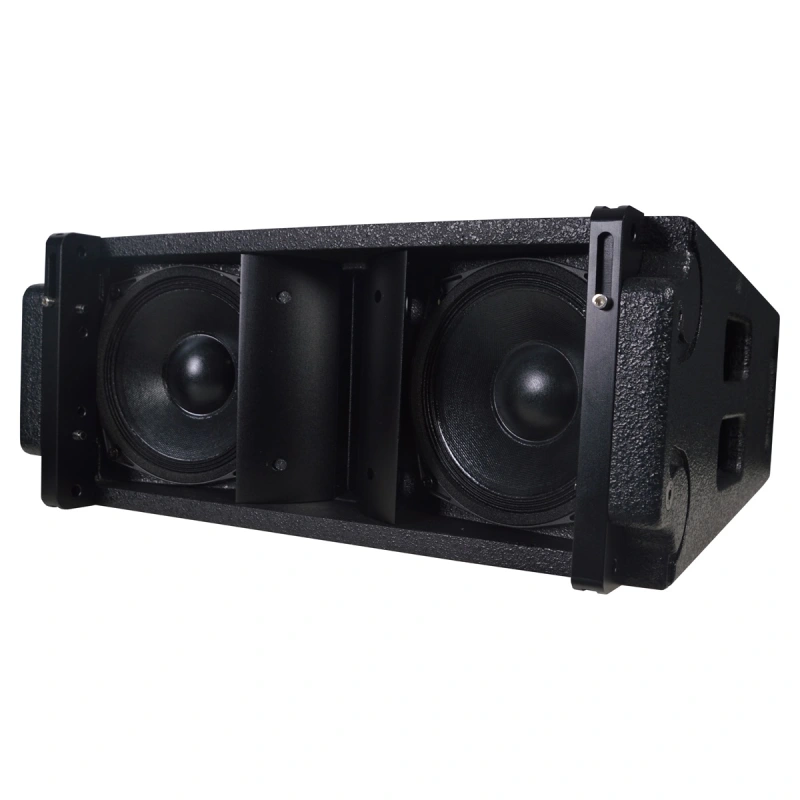

LA206+LA15S LINE ARRAY SPEAKER FOR PROFESSIONAL MOBILE PERFOMANCE

SKU:

HuiYin Audio's LA206+LA15S With versatile functions and advanced audio technology, the LA series of multi-functional line array speakers provide excellent audio performance in a variety of applications, accurately meeting different sound reinforcement needs. This speaker is used in performances, stadiums, theaters, banquet halls, multi-function halls and various high-end occasions

0.0 (0 Reviews)
0 Sold
$0.00 $3,371.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • LA206+LA15S LINE ARRAY SPEAKER
  • LA206+LA15S LINE ARRAY SPEAKER
  • LA206+LA15S LINE ARRAY SPEAKER
  • LA206+LA15S LINE ARRAY SPEAKER
  • LA206+LA15S LINE ARRAY SPEAKER
  • LA206+LA15S LINE ARRAY SPEAKER
  • Description
  • Company profile
Specification
LA206 LA15S R1300
System type Dual 6-inch two-way two-driver line array speakers 15INCH subwoofer
Frequency response: 90Hz -20 kHz 40Hz -250Hz Stereo 8Ω): 2×1300W
Stereo 4Ω): 2×1800W
Sensitivity (1W/1m): HF:106dB LF:96dB 98dB
Rated power (W): HF: 60W LF: 400W 500W
Nominal impedance (Ω) HF: 16Ω LF: 16Ω
Bass unit 2×6-inch ferrite carbon fiber woofer (50mm voice coil) Ferrite, 15" woofer/100mm voice coil
Tweeter: 1×1 inch ferrite tweeter (44mm voice coil)
Nominal coverage angle (H xV): 100°×10°
Maximum sound pressure level (SP L): HF: 123/129dB LF: 122/128dB 124dB (continuous), 130dB (peak
Suspension parts: three-point suspension adjustable from 0 to 10°
Connection socket: 2 professional NL4MP four-core sockets 2+2-HF, 1+1-LF Professional NL4MP four-core socket 2 pcs 1+1-
Dimensions (W×D×H): 475×375×201 (mm) 480×500×450(mm) 88×483×390mm
Product net weight (kg): 15kg 29kg 23.8kg
Bridged mono mode 8Ω 3500W
Frequency response (1W): 20Hz~20kHz, +1/-1dB
Total harmonic distortion (THD): ≤0.5%
Damping coefficient: ≥200:1
Voltage amplification (0.775V)
Signal-to-noise ratio (A-weighted): ≥97dB
Input sensitivity (rated power 8Ω): 0.775V
Input impedance (rated): 20KΩ
Input connector: One balanced XLR per channel
Output connector (speaker connection interface): 4-POLE Speakon per channel


Features
  • Selected high-quality and high-efficiency accessories
  • It is composed of a high-performance high-pressure neodymium tweeter and a low-distortion carbon fiber neodymium woofer.
  • High frequency, delicate and transparent
  • Thick and powerful low frequency
  • The speaker adopts high temperature resistant pure copper voice coil
  • The cabinet adopts precise CNC machining combined with complex slotting and wedging technology.
  • Change the hanging or stacking method to meet different occasions, convenient and safe
  • Application
  • Main PA for medium-sized PA systems
  • Mobile performances
  • gymnasium
  • Theater/theater/auditorium
