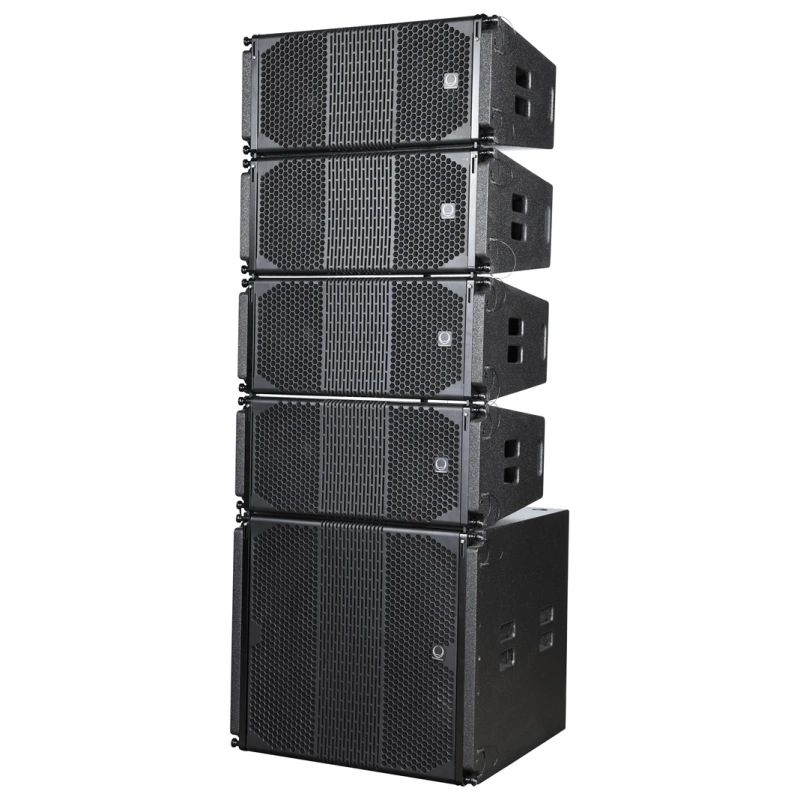

LA210+LA215B LINE ARRAY AUDIO FOR MOBILE PORFOMANCE

SKU:

HuiYin Audio's LA210+LA215B With versatile functions and advanced audio technology, the LA series of multi-functional line array speakers provide excellent audio performance in a variety of applications, accurately meeting different sound reinforcement needs. This speaker is used in performances, stadiums, theaters, banquet halls, multi-function halls and various high-end occasions

0.0 (0 Reviews)
0 Sold
$0.00 $6,018.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • LA210+LA18W LINE ARRAY AUDIO FOR MOBILE PORFOMANCE
  • LA210+LA18W LINE ARRAY AUDIO FOR MOBILE PORFOMANCE
  • LA210+LA18W LINE ARRAY AUDIO FOR MOBILE PORFOMANCE
  • Product details
  • Company profile
Specification
LA210 LA215B R1300
System type: Dual 10-inch two-way two-driver curve array speakers Dual 15-inch subwoofer speakers
Frequency response: 70Hz -18 kHz (±3) 40Hz -250Hz (±3dB) 35Hz-300Hz (-10dB) 20Hz~20kHz, +1/-1dB
Sensitivity (1W/1m): HF:110dB LF:98dB 105dB
Rated power (W): HF: 80W LF: 600W 1000W (AES) (stereo 8Ω): 2×1300W
(stereo 4Ω): 2×1800W
Nominal impedance (Ω): HF: 16Ω LF: 16Ω
Bass unit: 2×10-inch neodymium carbon fiber woofer (65mm voice coil) Neodymium magnet, 2×15" woofer/100mm voice coil
Tweeter: 1×3 inch neodymium magnet tweeter (75mm voice coil)
Nominal coverage angle (H xV): 100°×10°
Maximum sound pressure level (SP L): HF: 129/135dB LF: 127/133dB 128dB (continuous), 134dB (peak) Suspension
Suspension parts: Three-point suspension adjustable from 0 to 12° three-point suspension
Connection socket: 2 professional NL4MP four-core sockets 2+2-HF, 1+1-LF 2 professional NL4MP four-core sockets 1+1-
Dimensions (W×D×H): 644×416×283 (mm) 861×650 ×580 (mm)
Product net weight (kg): 26kg 59kg
Bridged mono mode 8Ω: 3500W
Total harmonic distortion (THD): ≤0.5%
Damping coefficient: ≥200:1
Voltage amplification (0.775V)
Signal-to-noise ratio (A-weighted): ≥97dB
Input sensitivity (rated power 8Ω): 0.775V
Input impedance (rated): 20KΩ (balanced)/10KΩ (unbalanced)
Separation: ≥60dB Input common mode rejection ratio: -80dB
Input connector: One balanced XLR per channel
Output connector (speaker connection interface): 4-POLE Speakon per channel
Compression ratio: 20:1
Power supply: AC 220V 50Hz~60Hz

Features

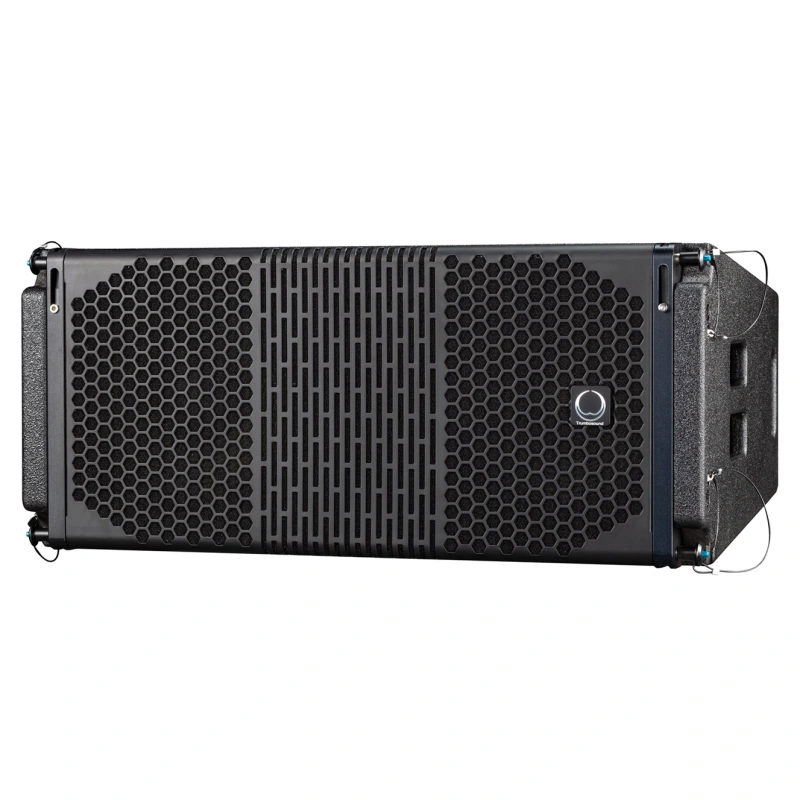

  • LA210 is a two-way full-range line array speaker system
  • Adopt symmetrical direct radiation arrangement

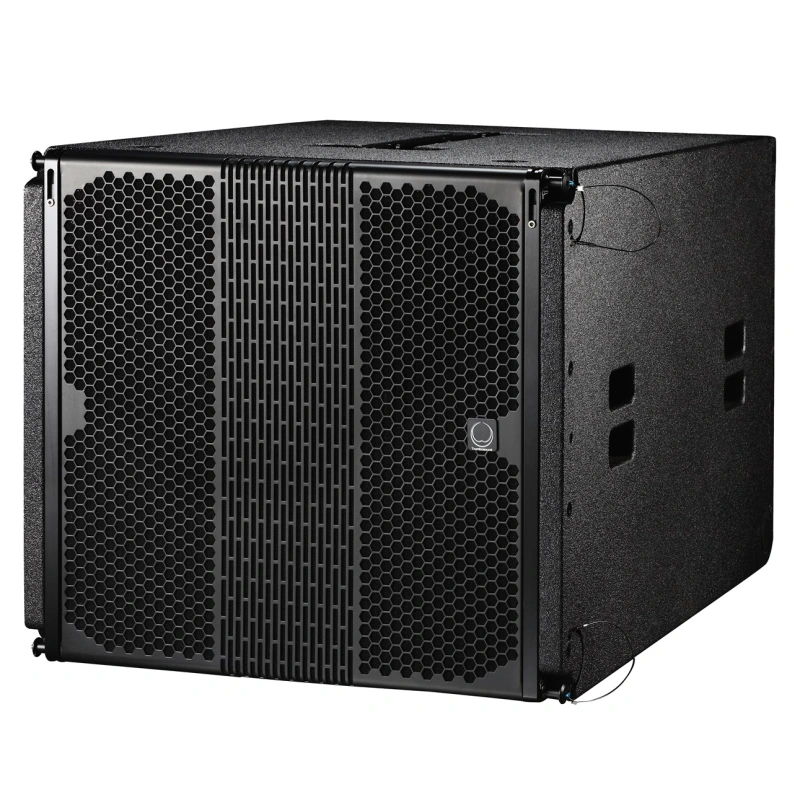

  • The LA18W is a compact, widely used high-performance line array subwoofer
  • LA18W is equipped with professional hanging device, which can be successfully hoisted with LA210.


Application
  • Main PA for medium-sized sound reinforcement systems
  • Mobile performances
  • gymnasium
  • Theater/theater/auditorium
