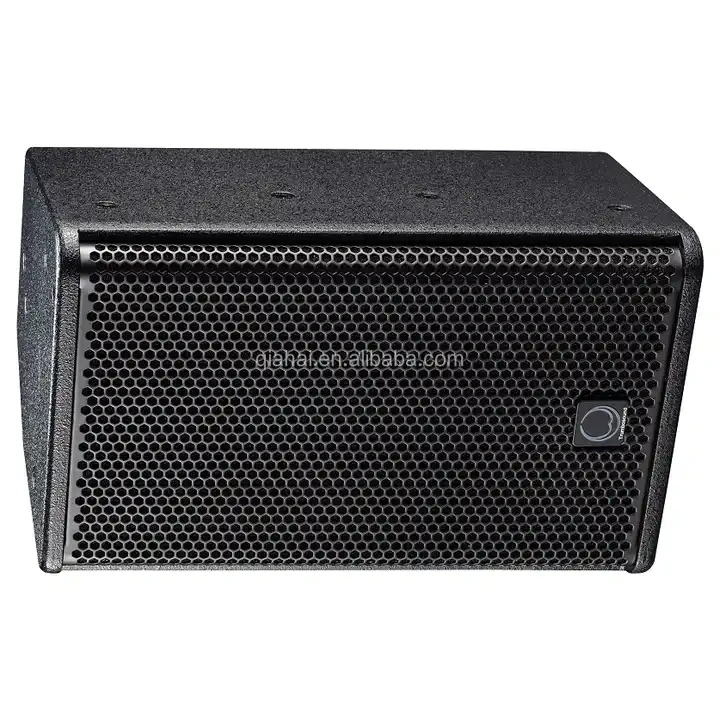

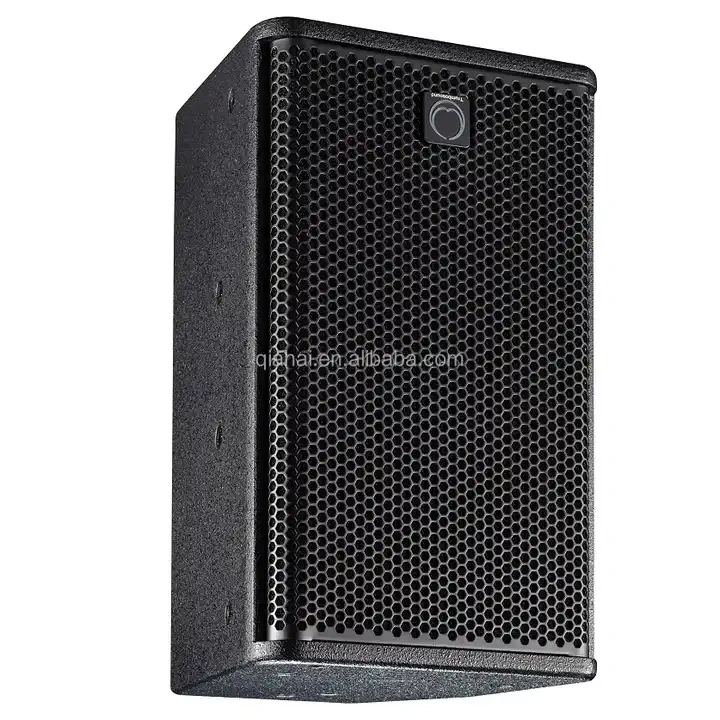

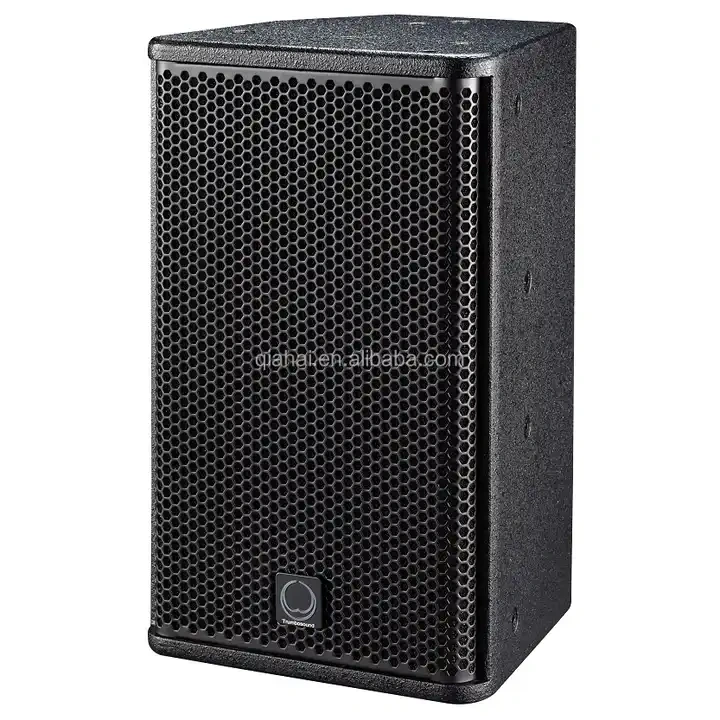

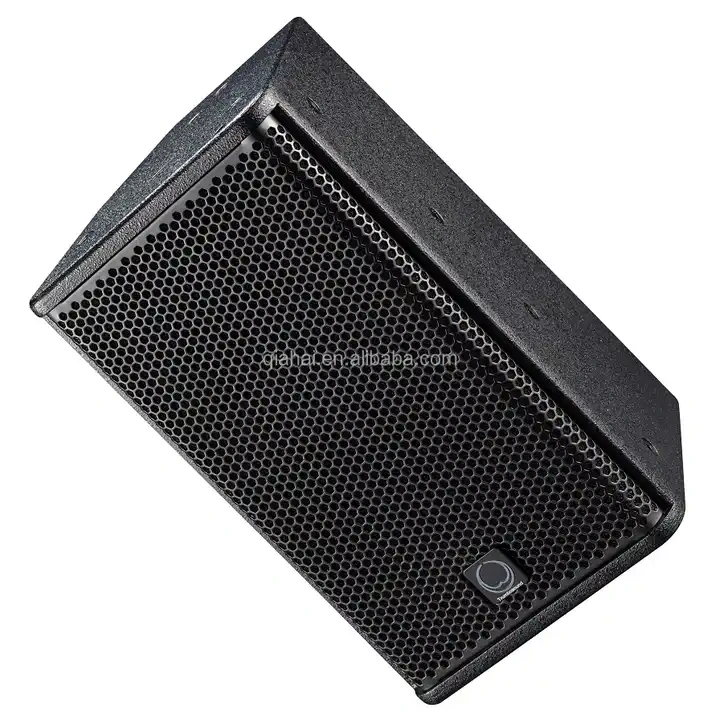

TR08 PASSIVE 8INCH FULL RANGE SUBWOOFER 180W DJ LINE ARRAY SYSTEM

Name: TR08 PASSIVE 8INCH FULL RANGE SUBWOOFER 180W DJ LINE ARRAY SYSTEM
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: TR08
Price: 78.85 USD
Availability: InStock

TR08 is a full range, two-way, passive, 8” loudspeaker designed to outperform its compact size. For short to medium throw distances, it effortlessly delivers rich and detailed sound with punch and precision.

0.0 (0 Reviews)

0 Sold

$78.85

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
Company profile

Specification

System type	Single 8-inch two-way full-range speaker
Frequency response	85 Hz -20 kHz (-10dB)
Sensitivity (1 W / 1 m)	91dB
Nominal impedance (Ω)	8Ω
Rated power (W)	180W (AES)
Bass unit	Ferrite, 1×8” woofer/51mm voice coil
Tweeter	Ferrite, 1×1” outlet tweeter/38mm voice coil
Nominal coverage angle (H x V)	100°×50°
Maximum sound pressure level (S P L)	114dB (continuous), 120dB (peak)
Hanging parts	17×M8 hanging points, bottom bracket
Connection socket	2 professional NL4MP four-core sockets, 1+1-full frequency input
Dimensions (W×D×H)	264×225×430 (mm)
Product net weight	8.5( kg

Features

(100°x50°) rotatable speaker, the speaker angle can be flexibly adjusted
Equipped with 17 M8 suspension points
1 bottom 35mm integrated support base
High-quality direct-fired 8-inch paper cone unit
36mm voice coil with 1-inch exported high-frequency titanium diaphragm compression unit

Application

Fill-in system for theaters and auditoriums
Meeting
Function Room
Club, DISCO auxiliary speakers
Main sound reinforcement in bars and private rooms
Stage returns
lip fills
