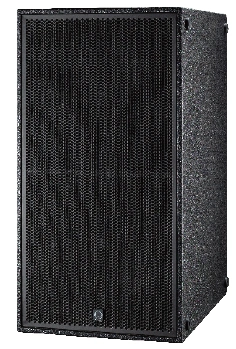

TR218BA SINAL 18INCH ACTIVE SUBWOOFER WITH DSP FOR STAGE

Name: TR218BA SINAL 18INCH ACTIVE SUBWOOFER WITH DSP FOR STAGE
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: TR218BA
Price: 705.9 USD
Availability: OutOfStock

The TR218BA is a very high output active subwoofer that produces impressive low frequencies for mobile entertainment, AV production, clubs and performance venues. Featuring 18-inch direct-radiating drivers powered by a 1600-watt Class D amplifier, the TR218BA delivers high sound pressure levels and dynamic and musical sound reproduction at extremely low frequencies

0.0 (0 Reviews)

0 Sold

$705.90

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Specification

System type	Single push 18-inch powered subwoofer with DSP
Frequency response	30Hz -200Hz (-10)
Sensitivity (1 W / 1 m)	100dB
Nominal impedance (Ω)	8Ω +8Ω
Rated power (W)	800W+800W (two 18-inch speakers driven independently
Bass unit	ferrite, 2×18 woofer/100mm voice coil
Maximum sound pressure level (S P L)	130dB /136dB
Connector	1× XLR IN; 1× XLR OUT; RJ45 (RS485 control interface); 2× Powercon IN/OUT
Amplifier module;	dual channel Class D
Sampling rate	48kHz/24Bit
Filter type	Butterworth,Linkwitz,bessel/6dB/oct~48dB/oct
Gain	20dB
Signal-to-noise ratio S/N	9 5 d B (A-weighted)
Working voltage range	AC100-240V, 50/ 60Hz
Product net weight (kg)	80kg
Dimensions (W×D×H)	1065×780×561 (mm)

Features

Using 4-inch voice coil with double-layer copper voice coil wound inside and outside, 18-inch high-power output bass driver.
Ensures long-term stable operation of the speaker and high-efficiency output.

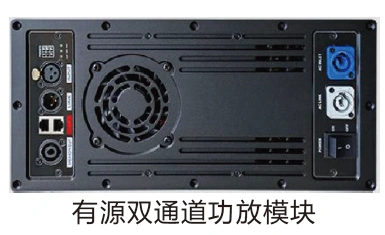

Built-in 2-channel active power amplifier module (1000W/8Ω×2).
With DSP digital audio processing management function.

Application

Large conference hall, multi-functional hall
Theaters, auditoriums
gym
CLUBS AND DISCO
Performing Arts Hall
