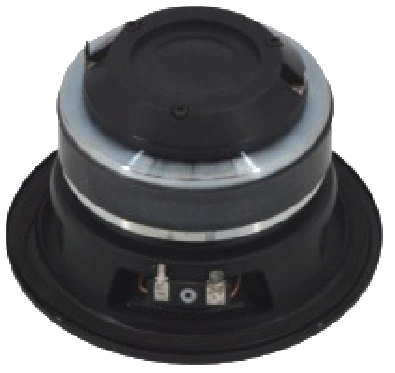

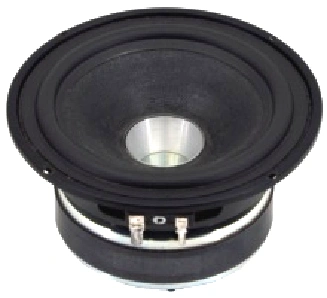

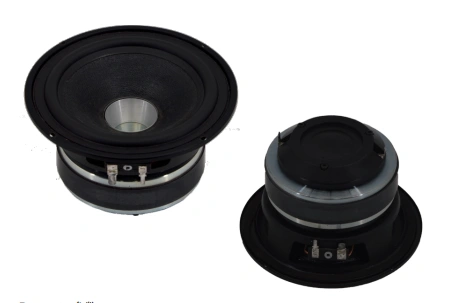

Trumbosound 5-Inch 120W Dual Ohm Coaxial Speaker | Deep Bass Audio

SKU:
Using the 5-inch 35-core coaxial speaker of Trumbosound, you can experience the perfect sound effects from low frequency band to high frequency band. It combines the latest Hi-Fi technology with high-end professional audio quality. The ultra-wide frequency response range, smooth tone and low distortion frequency response can make the audience far away enjoy loud and clear audio.
0.0 (0 Reviews)
0 Sold
$0.00 $19.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$13.00
100-1000
Quantity
-
+
0 * $19 = $0
save $0.00
  • Trumbosound 5-Inch 120W Dual Ohm Coaxial Speaker | Deep Bass Audio
  • Trumbosound 5-Inch 120W Dual Ohm Coaxial Speaker | Deep Bass Audio
  • Trumbosound 5-Inch 120W Dual Ohm Coaxial Speaker | Deep Bass Audio
  • Product details
  • Company profile
Experience unparalleled sound
  • It can achieve the effect of a point sound source, the sound propagation is more concrete, and the audience can feel the source and position of the sound more clearly.
  • The frequency response of the sound is consistent, which can provide a more natural and smooth sound quality.
  • The speaker has two units, treble and bass, which can reduce the installation space.
  • It can improve the emotionality of the sound in a complex acoustic environment


Durable material
  • High strength and high rigidity
  • Light weight
  • Good fatigue resistance
  • Low damping coefficient
  • Good stability


Parmeter
Model

HYW-535-009

Nominal diameter 5 inch
DC Resistance(RE)

5.4Ω

BL Factor(BL)

5.6961

Effective Moving Mass  (MMS)

10.6835

Total Factor(QTS)

0.5215

Electrical Factor(QMS)

2.3170

Mechanical Factor(QES)

0.6730

Compliance(CMS)

0.6534

Equivalent Cas Air Load(VAS)

6.8405

Resonance Frequency(FS)

60.2402

Effettive Pistom Area(SD)

0.0087

η(Eta Zero)

0.2133


General Specificatons
item LF drivers-5inch HF drivers-1inch
Nominal Diameter 5 inch 1inch
Nominal Impedance
AES power Handling AES

80W

60W

Continuous program power

120W

120W

Sensitivity 1w/1m 89dB 105dB
Frequency Range

60HZ-5KHZ

600HZ-20KHZ

Voice Coil Diameter 34mm 34mm
Winding Material Copper wire outer 2 layers solidly wound Aluminium wire solidly wound with 1 layer inside and 1 layer outside
Former Material Aluminium glassfiber
Winding Depth 12mm
Xmax 6mm
surround material Rubber edge for paper pots
surround Design Type U
Magnet

 Ferrite

Diaphragm Material

Titanium film


Mounting&Shipping Information
Overall Diameter

138mm

Bolt circle Diameter

134-4-Ф3.5

Baffle Cutout Diameter

117mm

Depth

85mm

Net Weight

1.3KG

Shipping Weight

1.5KG

Shipping Box(Single)

140×140×95mm

Shipping Weight(24Unit)

36KG

Shipping box(24umit)

560×328×276mm




Features

  • 8 ohm standard impedance
  • 120 watts continuous power
  • 600HZ-20KHZ frequency range
  • Rubber edge for paper pots

Application
  • Outdoor weddings
  • Home audio system
  • Stage performance
  • Recording studio
  • Karaoke
  • Line array speaker system
