Home > Professional Horns > Trumbosound 8-Inch 900W Dual Ohm Coaxial Speaker | Deep Bass Audio

1/1

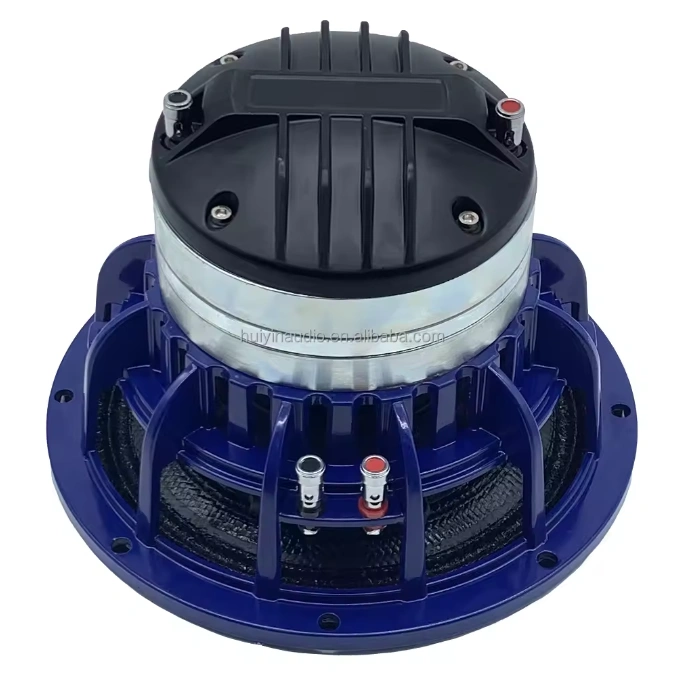

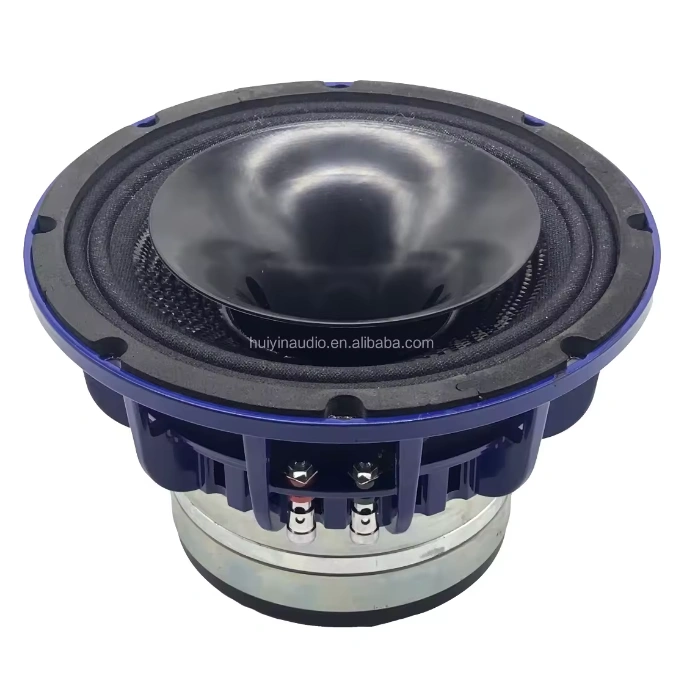

Trumbosound 8-Inch 900W Dual Ohm Coaxial Speaker | Deep Bass Audio

Name: Trumbosound 8-Inch 900W Dual Ohm Coaxial Speaker | Deep Bass Audio
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: HYW-875-023
Price: 77 USD
Availability: InStock

Using the 8-inch 75-core coaxial speaker of Trumbosound, you can experience the perfect sound effects from low frequency band to high frequency band. It combines the latest Hi-Fi technology with high-end professional audio quality. The ultra-wide frequency response range, smooth tone and low distortion frequency response can make the audience far away enjoy loud and clear audio.

0.0 (0 Reviews)

0 Sold

$77.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Product details
Company profile

Experience unparalleled sound

It can achieve the effect of a point sound source, the sound propagation is more concrete, and the audience can feel the source and position of the sound more clearly.
The frequency response of the sound is consistent, which can provide a more natural and smooth sound quality.
The speaker has two units, treble and bass, which can reduce the installation space.
It can improve the emotionality of the sound in a complex acoustic environment

Durable material

High strength and high rigidity
Light weight
Good fatigue resistance
Low damping coefficient
Good stability

Parmeter

Model	HYW-875-023
Nominal diameter	8 inch
DC Resistance(RE)	5.8Ω
BL Factor(BL)	21.44
Effective Moving Mass (MMS)	36.86
Total Factor(QTS)	0.19
Electrical Factor(QMS)	3.77
Mechanical Factor(QES)	0.20
Compliance(CMS)	0.13
Equivalent Cas Air Load(VAS)	9.63
Resonance Frequency(FS)	71.63
Effettive Pistom Area(SD)	0.02
η(Eta Zero)	1.62

General Specificatons

item	LF drivers-8inch	HF drivers-1inch
Nominal Diameter	8 inch	1inch
Nominal Impedance	8Ω	8Ω
AES power Handling AES	450W	100W
Continuous program power	900W	200W
Sensitivity 1w/1m	95dB	106dB
Frequency Range	71HZ-2KHZ	500HZ-20KHZ
Voice Coil Diameter	75mm	75mm
Winding Material	EISV/Inside and outside winding	Aluminum wire inner and outer layer 1
Former Material	GBF	glassfiber
Winding Depth	15mm
Xmax	7mm
surround material	Carbon fiber selvedge
surround Design	M
Magnet	Neodymium magnet
Diaphragm Material		Titanium film

Mounting&Shipping Information

Overall Diameter	210.7mm
Bolt circle Diameter	198-8-Ф6.5
Baffle Cutout Diameter	188.3mm
Depth	150mm
Net Weight	3.8KG
Shipping Weight	4.8KG
Shipping Box(Single)	226×226×180mm

Features

8 ohm standard impedance
900 watts continuous power
71HZ-2KHZ frequency range

EISV/Inside and outside winding

Application

Outdoor weddings
Home audio system
Stage performance
Recording studio
Karaoke
Line array speaker system

Our advantage

OEM/ODM:Professional speaker audio manufacturer, focusing on the manufacture and sale of speakers and amplifiers for more than ten years.
QC:All our products comply with international quality standards.
Our Power:The factory area is 5000-10000㎡, with an annual output of 50 million to 100 million US dollars.
Technical Team:The company was founded in 2008, with a team of 50-100 people and a 100% rapid response rate

About Us

Welcome to Trumbosound, where our passion for exceptional audio performance drives us to deliver top-tier speakers and amplifiers. Founded in 2009 in Guangzhou, China, we specialize in both professional and car audio systems. Our commitment to quality resonates through every product, designed to bring unparalleled sound to your spaces.

Over the years, Trumbosound has embraced technological advances to enhance our product lineup. Our state-of-the-art facilities include automated production lines and specialized testing equipment, ensuring every item meets rigorous standards. In 2017, our dedication to innovation was recognized when we were designated as a high-tech enterprise.

Trumbosound offers a broad range of audio products, meticulously crafted to suit diverse needs. From booming car speakers to refined professional audio systems, our products promise durability and clarity. We also pride ourselves on our ability to offer customized solutions, catering to unique market demands with flexibility in design and functionality.

FAQ
Who are we?
Trumbosound specializes in high-quality car and professional audio systems, dedicated to delivering superior sound experiences.

How can we guarantee quality?
We ensure quality through rigorous testing and by utilizing advanced manufacturing technologies in our state-of-the-art facilities.

What can you buy from us?
We offer a wide range of audio products including car speakers, professional audio systems, and custom audio solutions.

Why should you buy from us and not from other suppliers?
Trumbosound stands out for its commitment to innovation, quality, and customer-focused solutions in audio technology.

What services can we provide?
We provide comprehensive customer support, customization options for our audio products, and expert guidance on all our offerings.

COMPANY OVERVIEW

Company Album

Business type	Manufacturer	Country / Region	Guangdong, China
Main Products	car subwoofer,professional subwoofer, perfessional speaker, amplifier,high power amplifier for car, tweeter, pa speaker box,line array speaker ect	Total employees	50- 100 People
Year established	2008	Certifications	-
Product Certifications	CE	Patents	-
Trademarks		Main Markets	Domestic Market 60.00%

PRODUCT CAPACITY

Factory Information

Factory Size	Below 1,000 square meters
Factory Country/Region	No.28, Sanle East Road, Shunjiang Community, Beijiao Town, Shunde District, Foshan City
No. of Production Lines	5
Contract Manufacturing	OEM Service Offered
Annual Output Value	US$1 Million - US$2.5 Million
