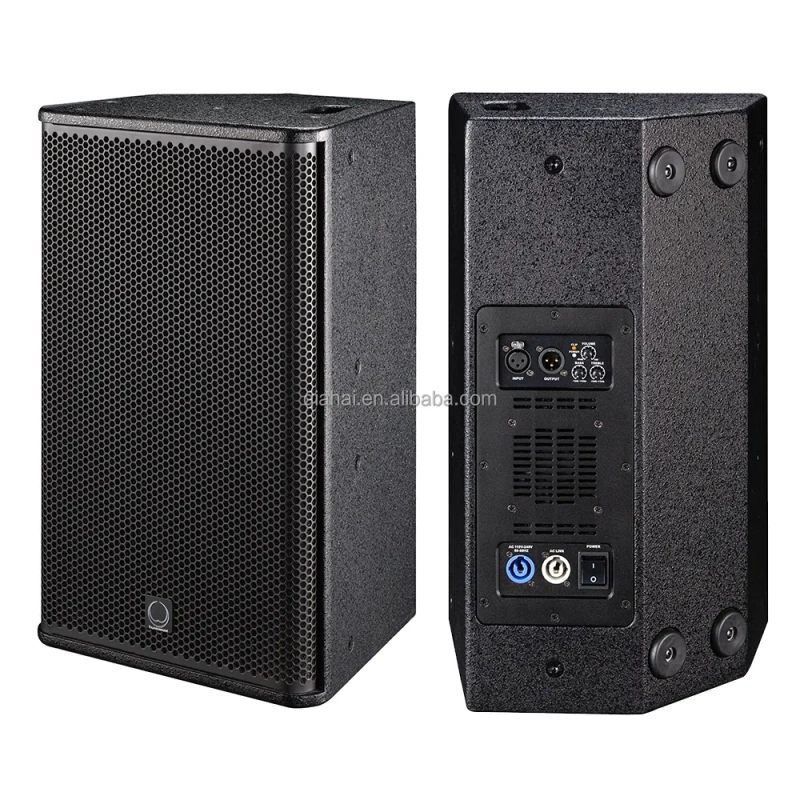

TR10A Active 10 Inch Two-way Full Range Loudspeaker RMS 250W DJ Audio Equipment Club Bar

Specification
System type: single 10-inch two-way full-range speaker
Frequency response: 80 Hz -20 kHz (-10dB)
Sensitivity (1 W / 1 m): 93dB
Nominal Impedance (Ω): 8Ω
Rated Power (W): 200W ( AES )
Woofer: Ferrite, 1×10" woofer/50mm voice coil
Tweeter: Ferrite, 1×1" tweeter/44mm voice coil
Nominal Coverage Angle (H x V): 100°×50°
Maximum SPL (SPL): 116dB (continuous), 122dB (peak))
Power amplifier module: 450W/8Ω
Hanging parts: 17×M8 hanging points,
Socket connection: input 2× XLR male, output 2×XLR female

 Fretures
The TR10A is a versatile compact built-in two-way sound system with a rotatable horn (100° x 55°),It can be combined with the hanging installation method to flexibly adjust the coverage angle of the speaker.
The TR10A full-range loudspeaker has the latest high-efficiency hanging system, equipped with 17 M8 lifting points and 1 bottom 35mm integrated support base can meet the needs of various fixed hanging methods and mobile installation. Built-in high-power Class D power amplifier, low temperature and high efficiency transmission precise sound quality.
The TR10A is a selection of high-quality direct-beam 10-inch paper cone drivers and a 44mm voice coil with a 1-inch outlet for high-frequency titanium film compression units with extremely high headroom and low distortion at high sound pressure, it is ideal for multi-functional applications with high sound quality requirements occasion.

Application                                                                           Theaters, auditoriums
Meeting
Multipurpose hall
Club, DISCO auxiliary speakers
The main sound reinforcement of the bar and private room
Stage return, stage lip filling
