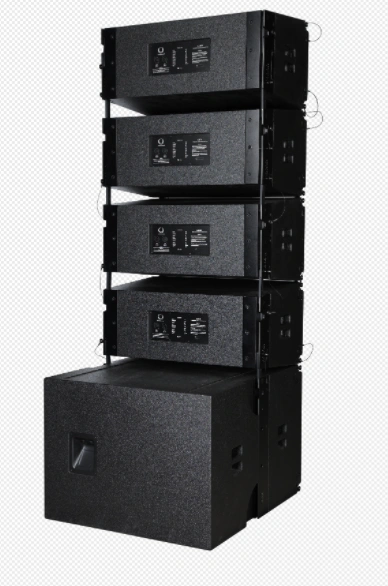

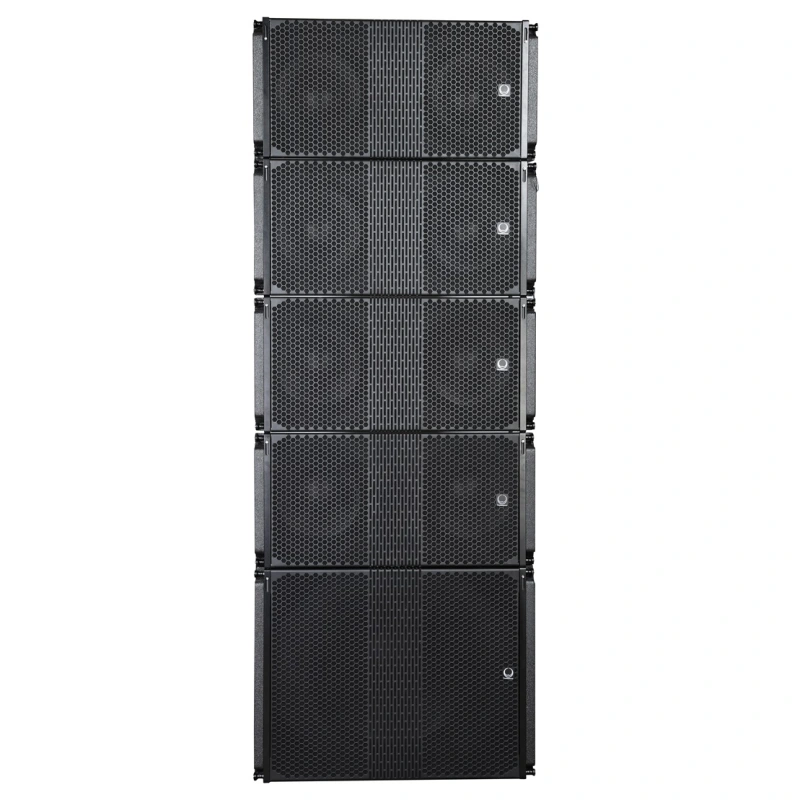

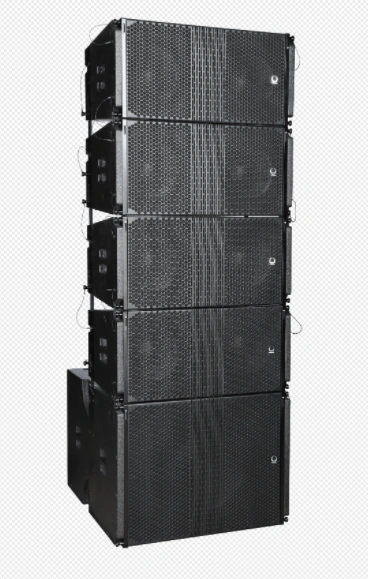

LA212+LA21B LINE ARRAY SPEAKER FOR MOBIAL PORFOMANCE

SKU:

HuiYin Audio's LA212+LA21B With versatile functions and advanced audio technology, the LA series of multi-functional line array speakers provide excellent audio performance in a variety of applications, accurately meeting different sound reinforcement needs. This speaker is used in performances, stadiums, theaters, banquet halls, multi-function halls and various high-end occasions

0.0 (0 Reviews)
0 Sold
$0.00 $8,597.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • LA212+LA21B LINE ARRAY AUDIO FOR MOBIAL PORFOMANCE
  • LA212+LA21B LINE ARRAY AUDIO FOR MOBIAL PORFOMANCE
  • LA212+LA21B LINE ARRAY AUDIO FOR MOBIAL PORFOMANCE
  • Description
  • Company profile
Specification
LA212 LA21B R4-1300
System type: Dual 1 2-inch two-way two-driver line array speakers Single 21-inch subwoofer
Frequency response: 63Hz -18 kHz (±3) 28Hz -350Hz 20Hz~20kHz, +1/-1dB
Sensitivity (1W/1m) HF:108dB LF:98dB 100dB
Nominal impedance (Ω) HF: 16Ω LF: 16Ω
Rated power (W): HF: 160W LF: 600W 1200W (stereo 8Ω): 2×1300W
(stereo 4Ω): 2×1800W
Bass unit: 2×12-inch ferrite carbon fiber woofer (75mm voice coil) Ferrite, 21" woofer/125mm voice coil
Tweeter: 2×1.4-inch exported ferrite compression tweeter (65mm voice coil)
Nominal coverage angle (H x V): 100°×10°
Maximum sound pressure level (SPL): HF: 130/136dB LF: 125/131dB 130dB (continuous), 136dB (peak)
Suspension parts: four-point suspension adjustable from 0 to 10° four-point suspension
Connection socket: 2 professional NL4MP four-core sockets 2+2-HF, 1+1-LF 2 professional NL4MP four-core sockets 1+1-
Dimensions (W×D×H): 796×469×378 (mm) 796×900×600 (mm) 88×483×390mm
Product net weight (kg): 47kg 76kg 23.8kg
Bridged mono mode 8Ω: 3500W
Total harmonic distortion (THD): ≤0.5%
Damping coefficient: ≥200:1
Voltage amplification Voltage amplification
Signal-to-noise ratio (A-weighted): ≥97dB
Input sensitivity (rated power 8Ω): 0.775V
Input impedance (rated): 20KΩ (balanced)/10KΩ (unbalanced)
Separation: ≥60dB Input common mode rejection ratio: -80dB
Input connector: One balanced XLR per channel
Output connector (speaker connection interface) 4-POLE Speakon per channel
Compression ratio: 20:1
Power supply: AC 220V 50Hz~60Hz

Features
  • LA212 is an external two-way full-range line array speaker system
  • LA212 adopts a symmetrical design, and the center of gravity of the box is concentrated in the middle of the box.
  • LA21B is a widely used high-performance line array subwoofer
  • LA21B is equipped with professional hanging device, which can be successfully hoisted with LA212.


Application
  • Large conference hall, multi-functional hall
  • Theaters, auditoriums
  • Gym
  • CLUBS AND DISCO
  • Performing Arts Hall
