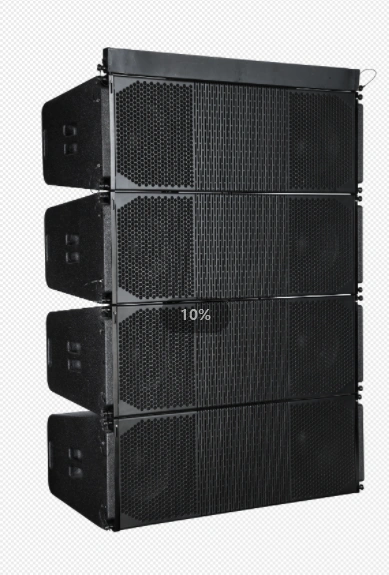

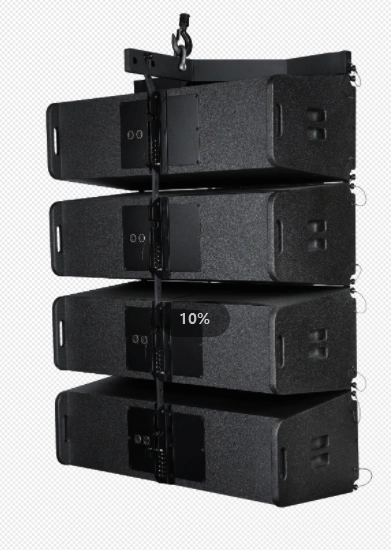

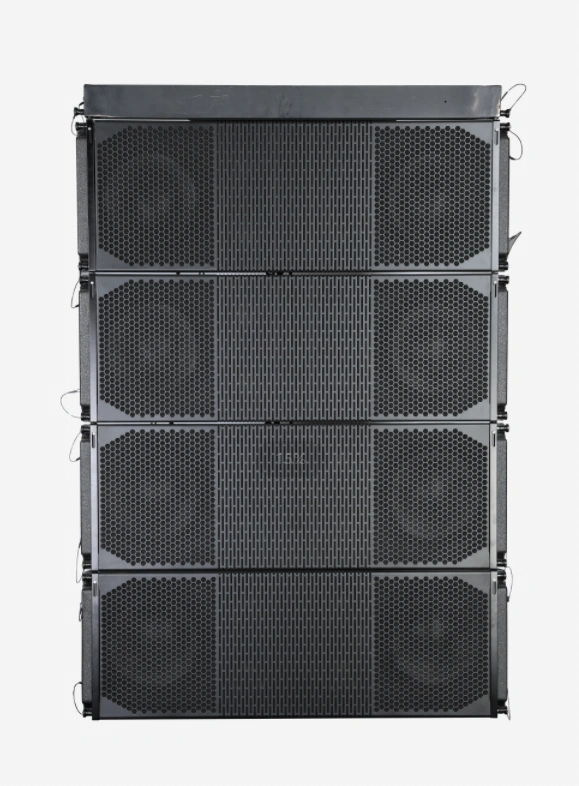

LA3212-V1 DUAL 12INCH THREE-WAY FOUR-DRIVER LINE ARRAY SPEAKER FOR MOBILE PERFORMANCE

SKU:
LA3212-V1 is a three-way four-driver line array speaker system. Line array loudspeakers feature high performance, high power, high directivity, versatility and a very compact cabinet design. Provides 2×12-inch neodymium magnet carbon fiber woofer (75mm voice coil), 4×6.5-inch neodymium magnet carbon fiber mid-range unit (50mm voice coil) and 2×3 neodymium magnet titanium diaphragm tweeter (75mm voice coil), professional performance system. The unique unit design and new materials can effectively enhance the unit's carrying power and are more suitable for working under high-power conditions for a long time, ensuring that the unit achieves high fidelity, broadband, and high fidelity during use.
0.0 (0 Reviews)
0 Sold
$0.00 $686.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • LA3212-V1 DUAL 12INCH THREE-WAY FOUR-DRIVER LINE ARRAY SPEAKER FOR MOBILE PERFORMANCE
  • LA3212-V1 DUAL 12INCH THREE-WAY FOUR-DRIVER LINE ARRAY SPEAKER FOR MOBILE PERFORMANCE
  • LA3212-V1 DUAL 12INCH THREE-WAY FOUR-DRIVER LINE ARRAY SPEAKER FOR MOBILE PERFORMANCE
  • LA3212-V1 DUAL 12INCH THREE-WAY FOUR-DRIVER LINE ARRAY SPEAKER FOR MOBILE PERFORMANCE
  • Product details
  • Company profile
Specification
System type Dual 1 2 three-way four-driver inch line array speakers
Frequency response 60Hz -18 kHz (-10dB)
Sensitivity (1W/1m) F:107dB MID:100dB LF:98dB
Nominal impedance (Ω) F: 8Ω MID: 8Ω LF: 8Ω
Rated power (W) HF: 160W MID: 480W LF1: 400W LF2: 400W
Bass unit eodymium magnet, 2×12” carbon fiber woofer/75mm voice coil
Midrange unit neodymium magnet, 4×6.5” carbon fiber midrange unit/50mm voice coil
tweeter neodymium magnet, 2×3” titanium diaphragm tweeter/75mm voice coil
nominal coverage angle; (HxV) 100°×10°
Maximum sound pressure level (SP L) LF: 130dB (continuous), 136dB (peak)
hanging parts three-point hanging 0°-10° adjustable
Connection socket 2 professional NL8MP eight-core sockets
Wiring method LF:1+1 LF:2+2- MID:3+3- HF:4+4-
Dimensions (W×D×H) 1105×521×378 (mm)
Product Weight 51( kg )

Features
  • Two 75MM titanium film neodymium magnetic compression drivers
  • Four 6.5-inch fabric-edged carbon fiber mid-frequency units
  • The 12-inch neodymium magnet carbon fiber woofer was specially developed for this product.
  • Re-aligned physical locations of tweeter and midrange drivers
  • Horizontal directivity 100°

Application
  • The main PA of a large sound reinforcement system
  • mobile performance
  • stadium
  • Theater/theater/auditorium
